СКУ: PFXSP5B10

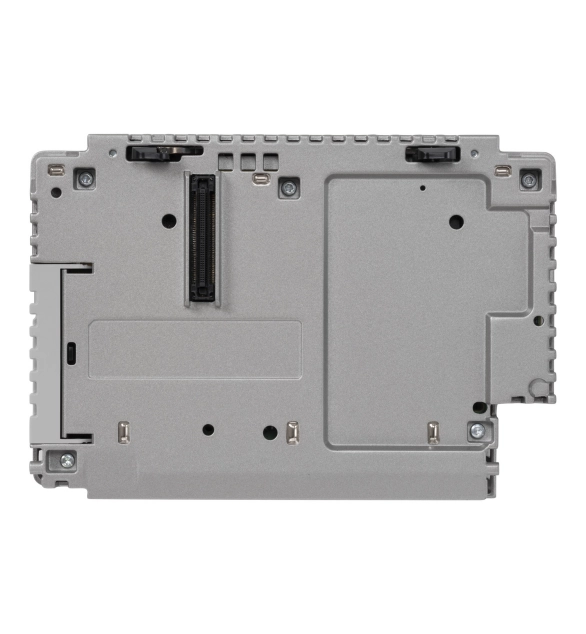

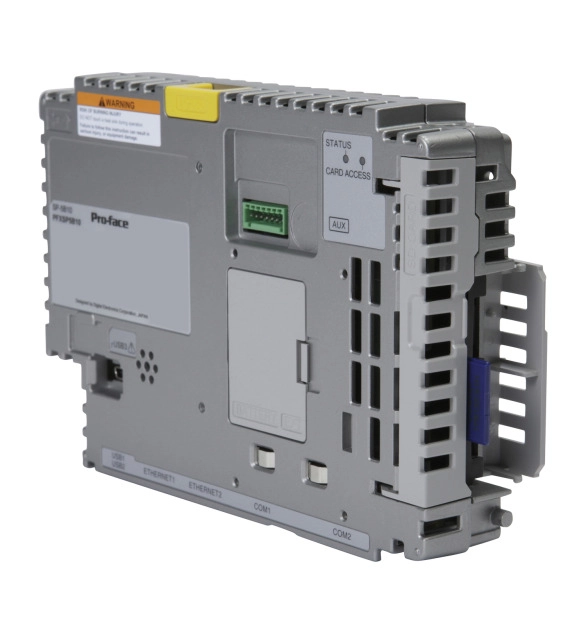

SCHNEIDER ELECTRIC/Pro-face Power Box, SP5000, DC
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Number of HW-interfaces USB
3
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Supply voltage DC
12
-
Number of HW-interfaces RS-422
2
-
Number of HW-interfaces RS-485
2
-
Number of HW-interfaces RS-232
2
-
Voltage type of supply voltage
EV000509
-
Wall mounting/direct mounting
TRUE
-
Suitable for safety functions
TRUE
-
Number of HW-interfaces industrial Ethernet
2
-
Brand
ProFace
-
Supporting protocol for Foundation Fieldbus
TRUE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces Wireless
-
Operating temperature
-
Number of HW-interfaces other
5
This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has 2x RS-232C/422/485 ports, 2x host + 1x mini-B USB ports, 2x Ethernet ports (1Gbps), 2x SD card slots, 1x expansion unit interface, 1x sound output and 1x AUX output interface. It has various communication interfaces, ideal for supervising and controlling complex systems and machines. It supports 1GB SD Card (operating system, project data, and other data) and backup memory of NVRAM 512KB. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9kg. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control Equipment, and Marine standards such as ABS, BV, CCS, DNV-GL, LR, RINA and NK. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.
