СКУ: RM17UBE15

SCHNEIDER ELECTRIC Voltage control relay, 5A, 1CO, over and under voltage detection, 65-260V AC/DC

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Depth
    72
  • Number of contacts as change-over contact
    1
  • With detachable clamps
    FALSE
  • Voltage type for actuating
    EV000509
  • Height
    90
  • Rated control supply voltage Us at AC 50HZ
    110
  • Rated control supply voltage Us at AC 60HZ
    110
  • Rated control supply voltage Us at DC
    110
  • Width
    17.5
  • Max. permitted off-delay time
    10
  • Min. adjustable off-delay time
    0.1
  • Single-phase over voltage possible
    TRUE
  • Single-phase under voltage possible
    TRUE
  • Contains function DC-over voltage
    FALSE
  • Max. permitted delay-on energization time
    0.5
  • Contains function DC-voltage hysteresis
    FALSE
  • Type of voltage measuring range
    EV000509
  • Three-phase over voltage possible
    FALSE
  • Three-phase under voltage possible
    FALSE
  • Contains function DC-under voltage
    TRUE
  • Three-phase hysteresis possible
    FALSE
  • Voltage measuring range 1
    65
  • Response value voltage
    50
  • Single-phase hysteresis possible
    FALSE
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact

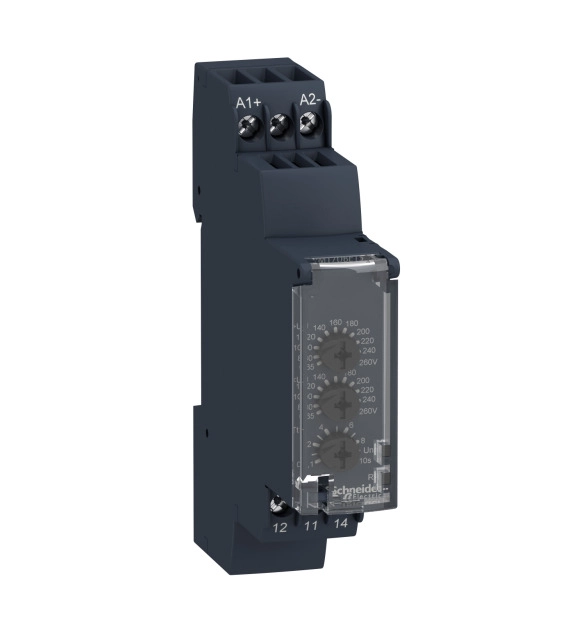

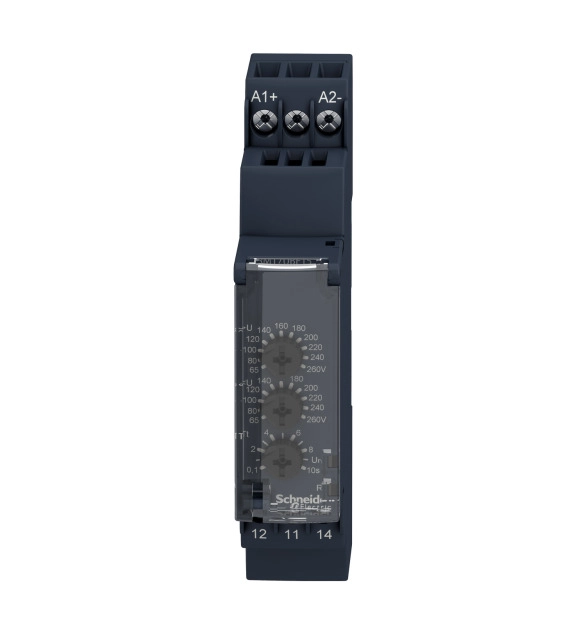

This Harmony RM17-UB relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
