SCHNEIDER ELECTRIC Undervoltage relase (MN), 220-240V AC 60 Hz | Spark & Co
  • 3D
  • 3D
|

СКУ: GVAU226

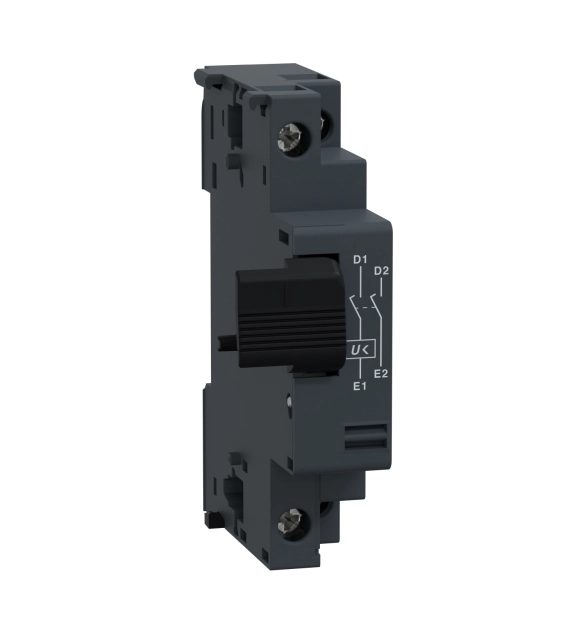

SCHNEIDER ELECTRIC Undervoltage relase (MN), 220-240V AC 60 Hz

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Voltage type for actuating
    EV000460
  • Suitable for power circuit breaker
    TRUE
  • Suitable for off-load switch
    FALSE
  • Suitable for overload relay
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    380
  • Suitable for motor safety switch
    TRUE
  • Delayed
    FALSE
  • Rated control supply voltage Us at AC 60HZ
    440
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact
  • Number of contacts as change-over contact

TeSys GV electrical trip, MN undervoltage release, 380-400V AC 50Hz / 440V AC 60Hz, for motor circuit breakers GV2ME used in safety-related systems. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, INRS, VDE 0113), Sustainability compliant.
