СКУ: LRD07

SCHNEIDER ELECTRIC Thermal overload relay, 690VAC, 1.6-2.5A, 1NO+1NC, class 10A

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Number of contacts as normally closed contact
    1
  • Operating principle
    EV000101
  • Setting time
    1
  • Number of contacts as change-over contact
  • Switching function
    EV008453

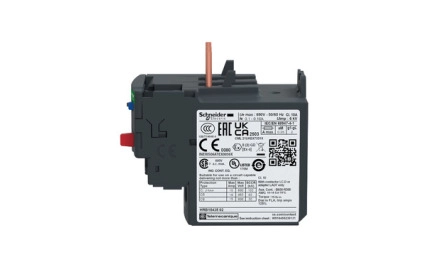

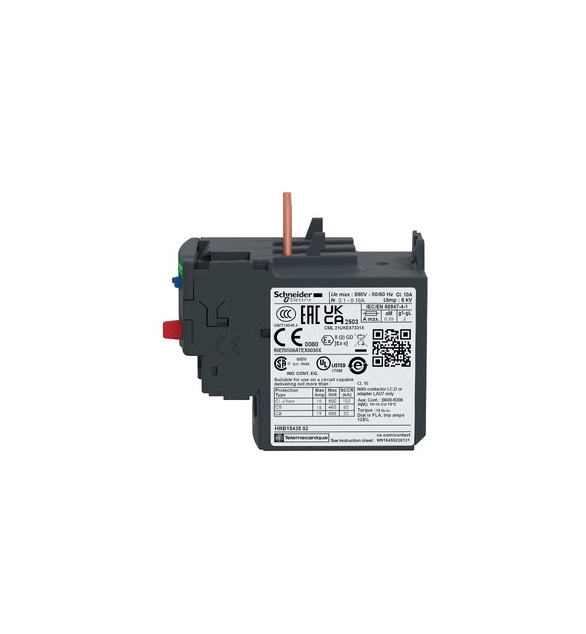

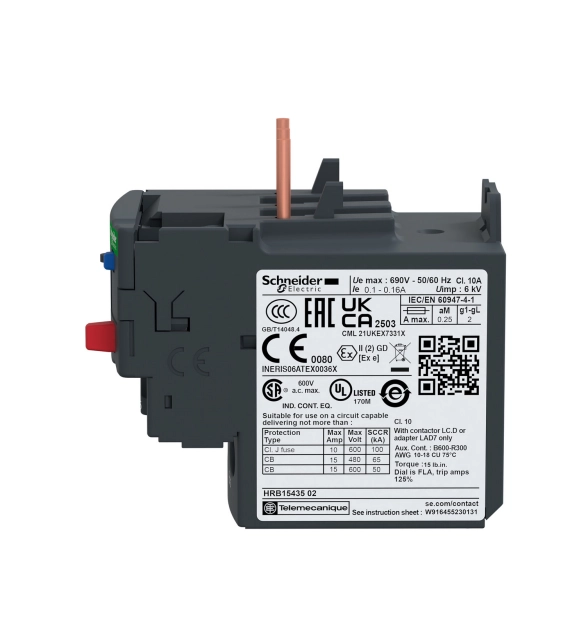

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW/400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
