СКУ: GB2CB10

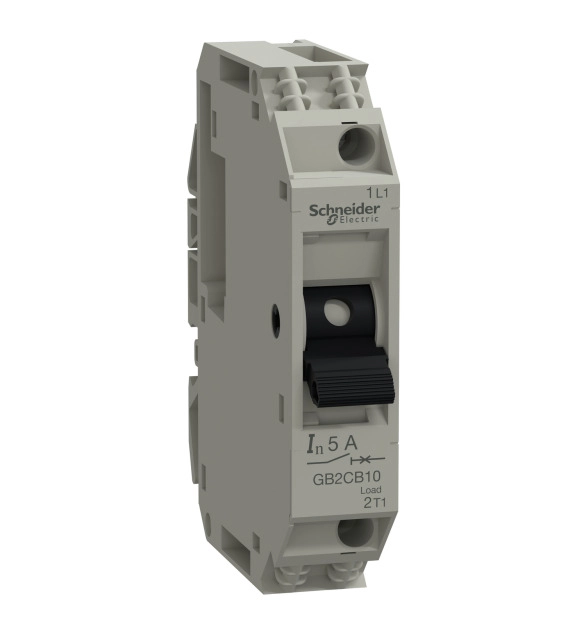

SCHNEIDER ELECTRIC Thermal magnetic circuit protector, 1P, 5A, Id=66A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
1
-
Frequency
50
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Number of poles (total)
1
-
Number of protected poles
1
-
Voltage type
EV000460
-
Over voltage category
3
-
Ambient temperature during operating
-20
-
Pollution degree
2
-
Rated impulse withstand voltage Uimp
4
-
Release characteristic
EV000154
-
Built-in depth
74
-
Rated insulation voltage Ui
250
-
Additional equipment possible
FALSE
-
Rated voltage
250
-
Connectable conductor cross section solid-core
0.75
-
Current limiting class
3
-
Connectable conductor cross section multi-wired
0.75
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
2
-
Rated current
5
TeSys GB circuit breaker, 1 pole (1P), 5A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 66A (13 In) and breaking capacity Icu 2kA at 240V. It can also be used for protection of DC loads up to 5A/48V DC-13 with a breaking capacity Icu 1.5kA at 24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA).
