SCHNEIDER ELECTRIC Tap off unit, for ComPacT NSX250 circuit breaker, 250A, 3L+N+PE (unequipped) | Spark & Co
  • 3D
  • 3D
|

СКУ: KSB250DC4

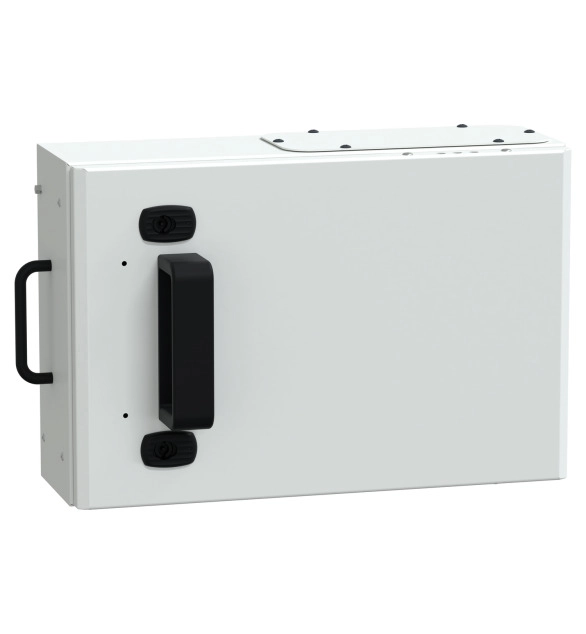

SCHNEIDER ELECTRIC Tap off unit, for ComPacT NSX250 circuit breaker, 250A, 3L+N+PE (unequipped)

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Number of poles
    4
  • Number of conductors (without earthing)
    3
  • Degree of protection (IP)
    EV006420
  • Protection
    EV000494
  • RAL-number
    9001
  • Number of other socket outlets
  • Number of CEE socket outlets
  • Phase selection
    FALSE
  • Type of socket outlets
    EV000154
  • Number of NEMA socket outlets
  • With adjustment
    FALSE
  • Rated voltage at AC 50 Hz
    230
  • Branch off type
    EV008941
  • Width
    128
  • Rated current at AC 50 Hz
    100
  • Length
    444
  • Height
    220

Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 100A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for size 00 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
