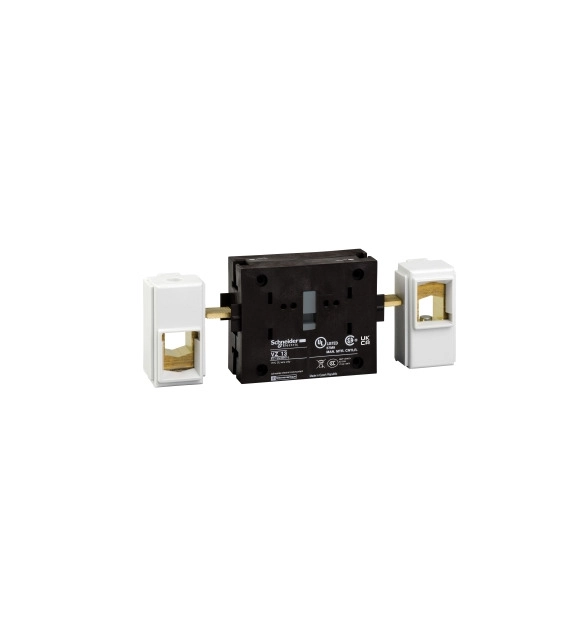

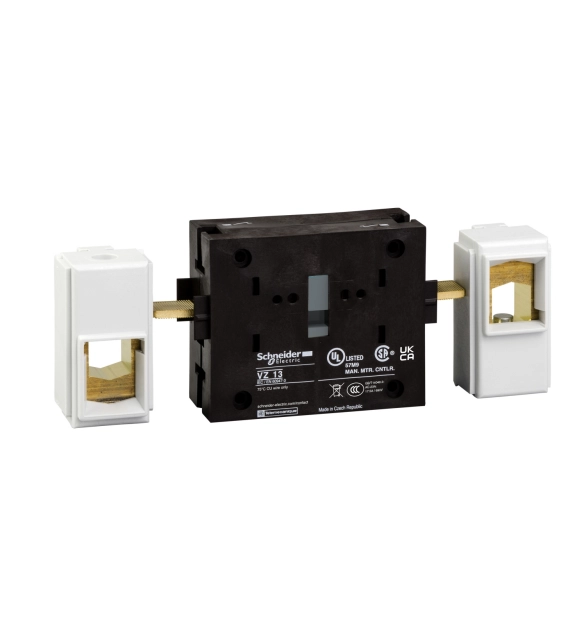

SCHNEIDER ELECTRIC Switch disconnector, for ON/emergency stop,125A,for mounting on door

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Version as reversing switch
  FALSE
• Suitable for front mounting centre
  TRUE
• Conditioned rated short-circuit current Iq
  10
• Max. rated operation voltage Ue AC
  690
• Number of poles
  3
• Voltage release optional
  FALSE
• Device construction
  EV009211
• Version as maintenance-/service switch
  FALSE
• Version as safety switch
  FALSE
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as change-over contact
• Number of auxiliary contacts as normally open contact
• Rated operating voltage
  690
• Suitable for distribution board installation
  FALSE
• Number of switches
  1
• Motor drive integrated
  FALSE
• Suitable for intermediate mounting
  FALSE
• Suitable for floor mounting
  FALSE
• Motor drive optional
  FALSE
• Rated operation power at AC-3, 400 V
  7.5
• Rated permanent current Iu
  32
• Rated short-time withstand current lcw
  0.384
• Rated operation power at AC-23, 400 V
  11
• Rated permanent current at AC-21, 400 V
  32
• Rated permanent current at AC-23, 400 V
  21.8
• Type of control element
  EV004094
• Version as main switch
  TRUE
• Interlockable
  TRUE
• Degree of protection (IP), front side
  EV006421
• Version as emergency stop installation
  TRUE
• Colour control element
  EV000233
• Suitable for front mounting 4-hole
  FALSE
