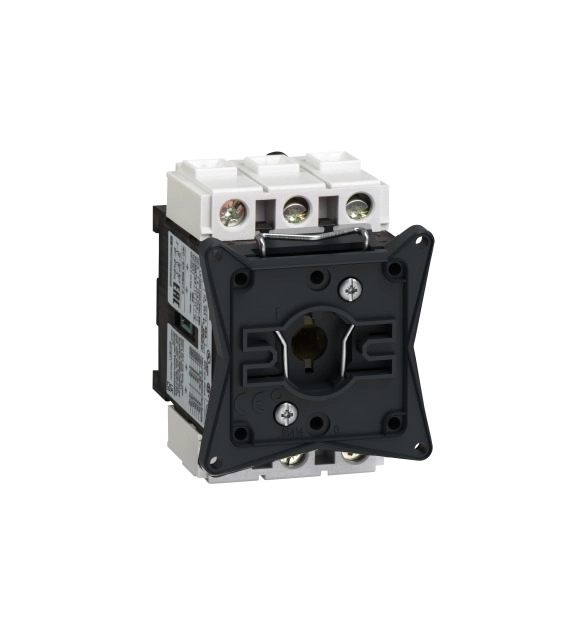

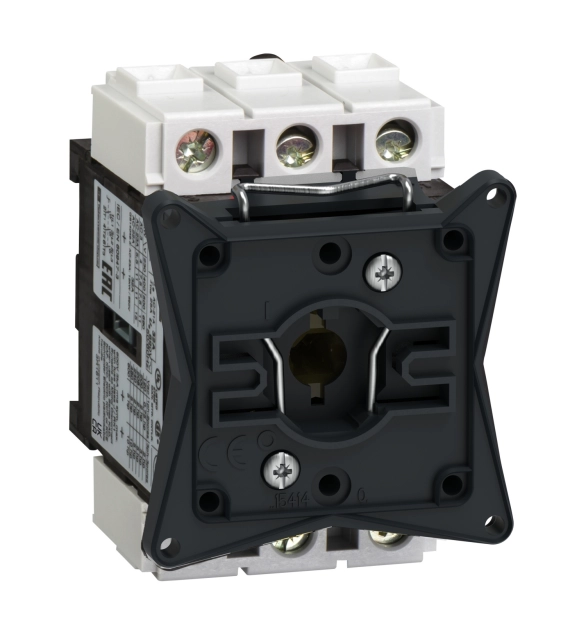

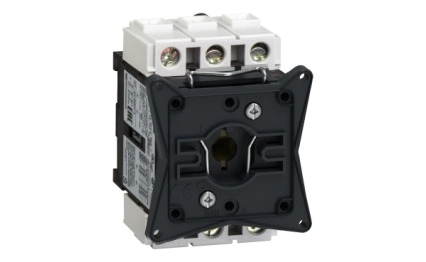

SCHNEIDER ELECTRIC Switch body, TeSys Control, 3 poles, 32A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Version as reversing switch
    FALSE
  • Suitable for front mounting centre
    TRUE
  • Conditioned rated short-circuit current Iq
    10
  • Max. rated operation voltage Ue AC
    690
  • Number of poles
    3
  • Version as main switch
    FALSE
  • Voltage release optional
    FALSE
  • Device construction
    EV009211
  • Interlockable
    FALSE
  • Version as maintenance-/service switch
    FALSE
  • Version as safety switch
    FALSE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Degree of protection (IP), front side
    EV006405
  • Rated operating voltage
    690
  • Suitable for front mounting 4-hole
    TRUE
  • Suitable for distribution board installation
    FALSE
  • Number of switches
    1
  • Motor drive integrated
    FALSE
  • Suitable for intermediate mounting
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Rated operation power at AC-3, 400 V
    22
  • Rated permanent current Iu
    80
  • Rated short-time withstand current lcw
    0.96
  • Rated operation power at AC-23, 400 V
    30
  • Rated permanent current at AC-21, 400 V
    80
  • Rated permanent current at AC-23, 400 V
    57

TeSys Vario switch body, 3 poles, 12A/690V, for motor switching applications up to 4kW/400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Environmental compliant (RoHS/REACh).
