СКУ: LAD4T3B

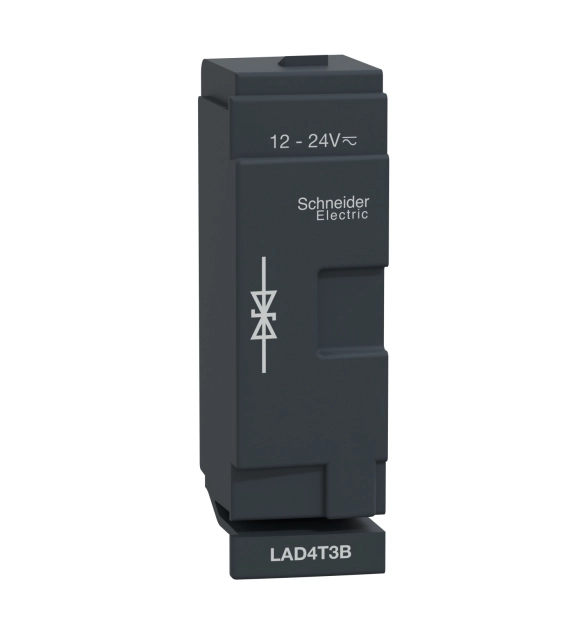

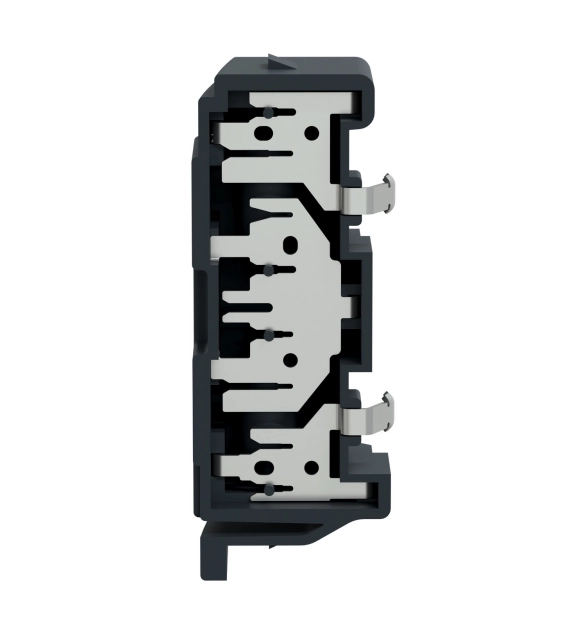

SCHNEIDER ELECTRIC Suppressor module - bidirectional peak limiting diode, 24V AC/DC
-
Brand
Schneider Electric
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
12
-
With LED indication
FALSE
-
Function
EV000866
TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 12-24V AC or DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Sustainability compliant.
