СКУ: ABE7R16S210

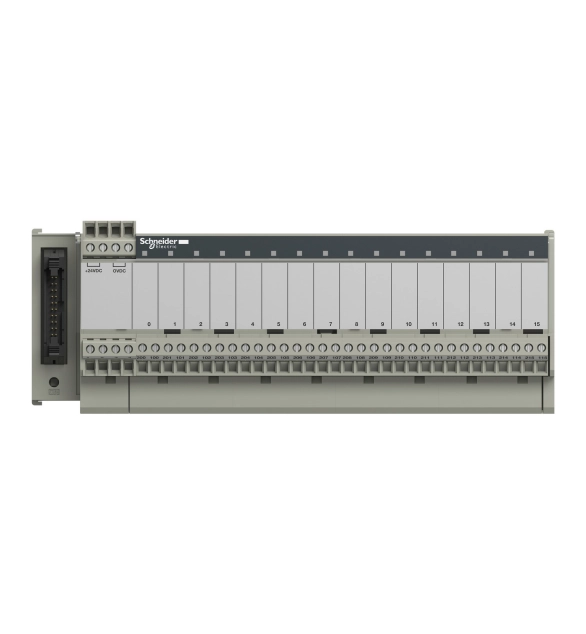

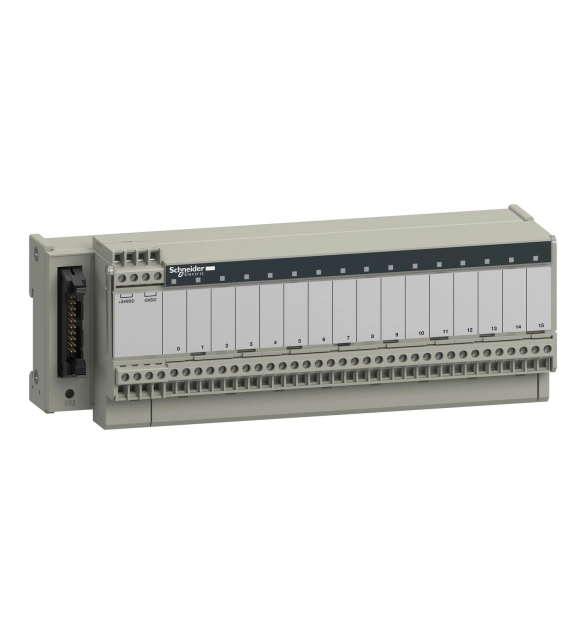

SCHNEIDER ELECTRIC Sub-base ABE7 - 16 channels
-
Brand
Schneider Electric
-
Transparent
FALSE
-
Colour
EV000270
-
Mounting method
EV005503
-
Type of electrical connection 1
EV000415
-
Closing plate required
FALSE
-
Material insulation body
EV000403
-
Halogen free
FALSE
-
Operating temperature
-5
-
Inflammability class of insulation material according to with UL94
EV000154
-
Rated voltage
24
-
Explosion-tested version 'Ex e'
FALSE
-
Number of poles
16
-
Type of electrical connection 2
EV000414
-
Number of clamp positions per pole
2
-
Drill hole distance centrically
10
-
Connectable conductor cross section solid-core
0.324
-
Rated current In
0.09
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered electromechanical relay, provides 16 channels. It has normally opened contact for pre-actuator. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 24V DC and a maximum current of 10A per output. It offers electrical durability about 500000 operating cycles. It is an IP2x rated product. Its dimension is 206mm (Width). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
