СКУ: MCSESU053FN0

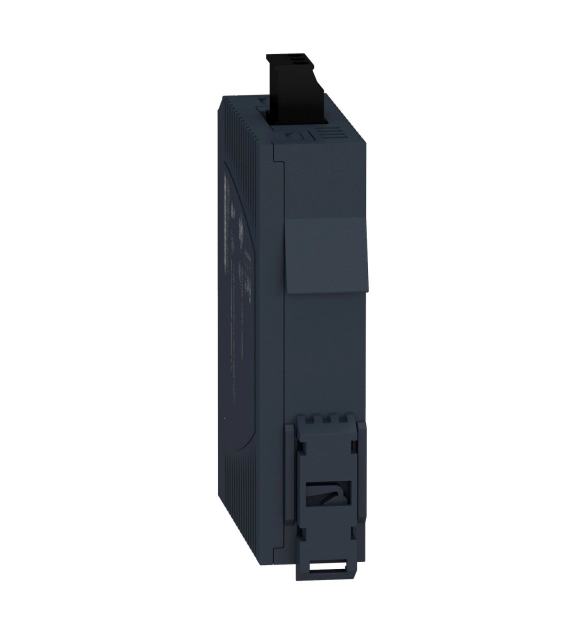

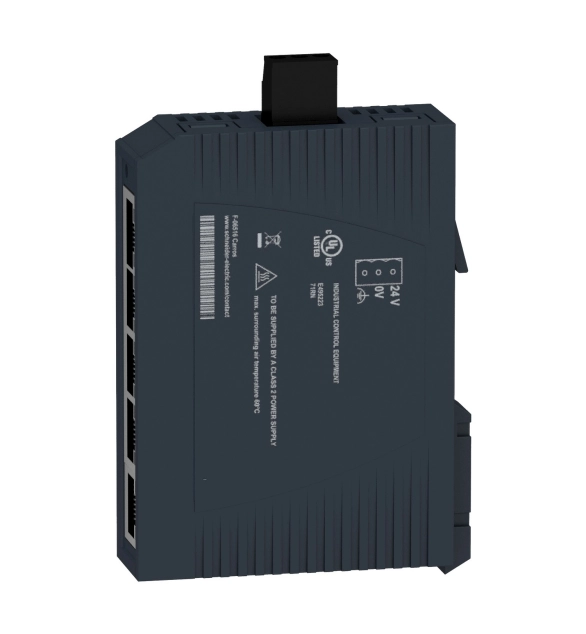

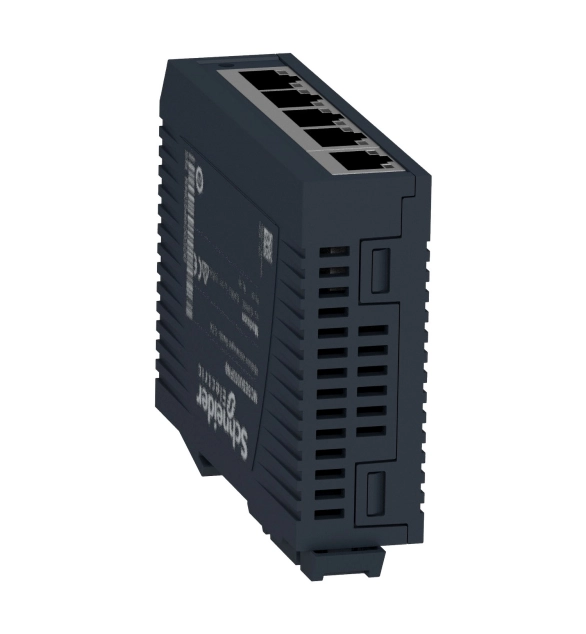

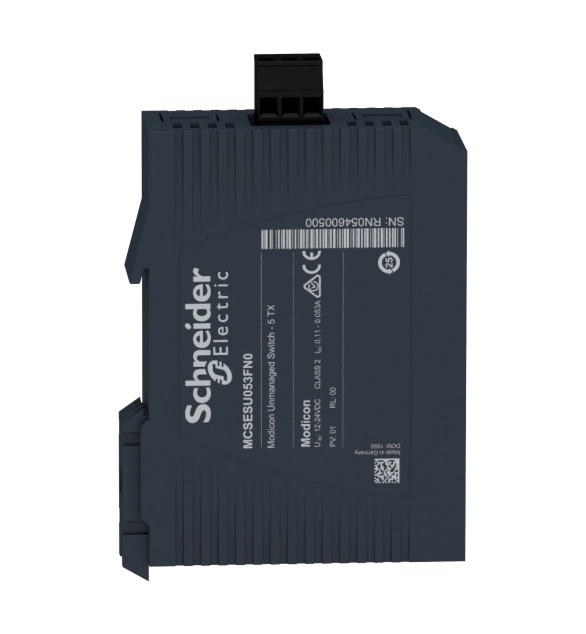

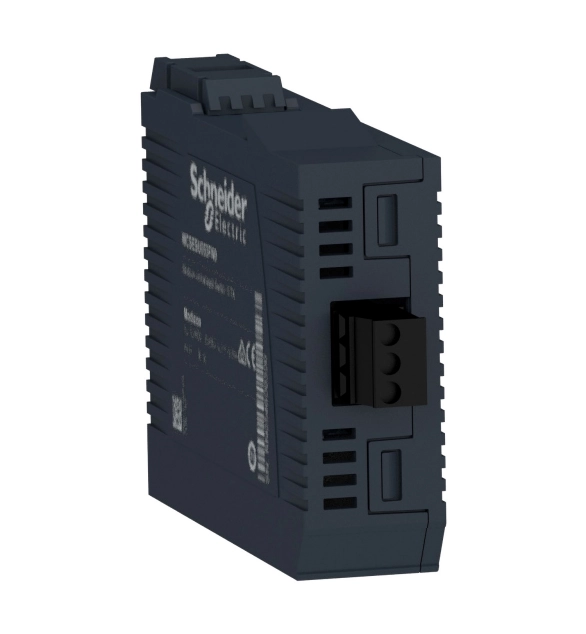

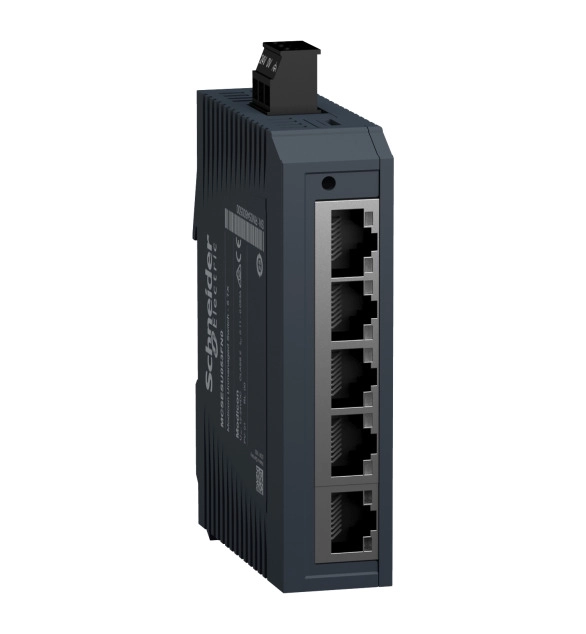

SCHNEIDER ELECTRIC Standard unmanaged switch Modicon, 5 ports for copper

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006410
  • Width
    26
  • Power over Ethernet (PoE)
    EV000154
  • Height
    102
  • Compatible with Grade2TV according to XP-C 90-483
    FALSE
  • Compatible with Grade3TV according to XP-C 90-483
    FALSE
  • Layer 3
    FALSE
  • Ethernet
    TRUE
  • Mounting method
    EV000941
  • Depth
    79
  • Layer 2
    TRUE
  • Number of ports 100 Mbps SC
  • Number of other ports
  • Number of ports 10/100 Mbps RJ45
    5
  • Number of ports 10 Gbps RJ45
  • Number of ports 100 Gbps Mini GBIC
  • Number of ports 40 Gbps Mini GBIC
  • Number of ports 1000 Mbps GBIC
  • Manageable
    FALSE
  • Number of ports 10/100 Mbps M12
  • Number of ports 10/100/1000 Mbps RJ45
  • Number of ports 100 Mbps POF
  • Number of ports 1000 Mbps Mini GBIC
  • Number of ports 1000 Mbps SC (SX)
  • Number of combination-ports RJ45/Mini GBIC
  • Number of ports 100 Mbps ST
  • Number of ports 1000 Mbps RJ45
  • Number of max. stackable switches
  • Max. PoE power
  • Number of ports 100/1000 Mbps Mini GBIC
  • Number of ports 1000 Mbps SC (LX)
  • Number of module slots
  • Number of ports 1000 Mbps POF
  • Number of ports PoE
  • Number of ports 10 Gbps Mini GBIC

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
