СКУ: STBNCO2212

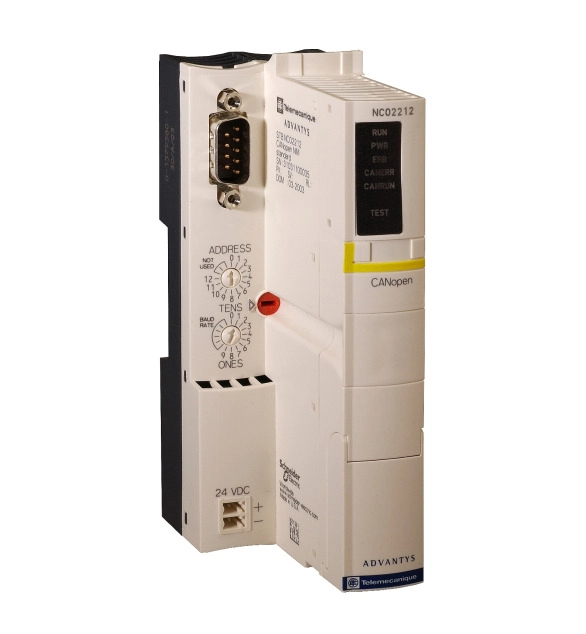

SCHNEIDER ELECTRIC Standard Network Interface Module STB, CANopen bus, 1 Mbit/s
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
System accessory
TRUE
-
With potential separation
TRUE
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Radio standard LTE
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Radio standard eGPRS
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Depth
70
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
Height
40
-
Voltage type of supply voltage
EV000509
-
Supporting protocol for CAN
TRUE
-
Suitable for safety functions
TRUE
-
Rack-assembly possible
TRUE
-
Fieldbus connection over separate bus coupler possible
TRUE
-
Explosion safety category for gas
EV006563
-
Width
128.3
This interface module is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 clients. This interface module has a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. This product is compatible with most major fieldbus networks. It works with SELV power supply. This product is IP20 rated. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
