СКУ: SSM1A312BD

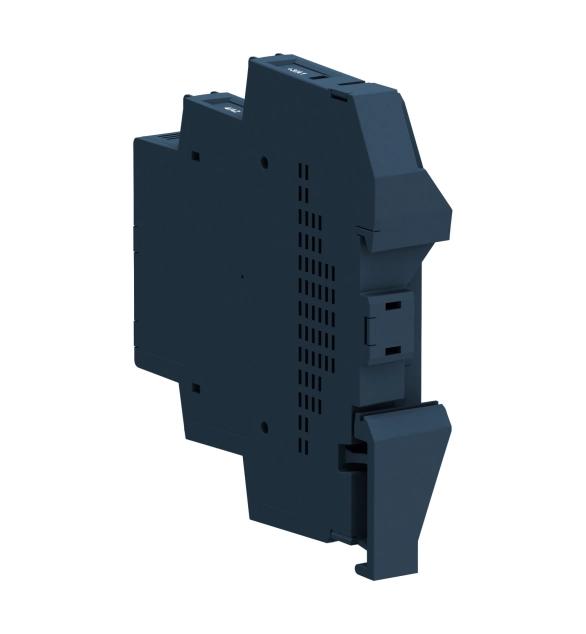

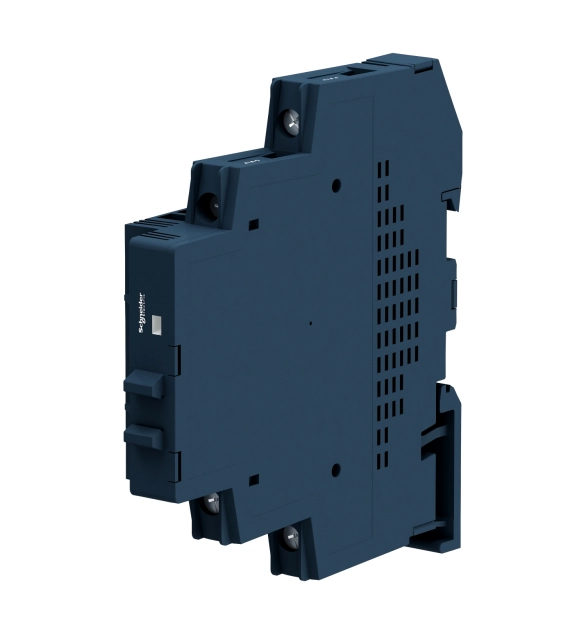

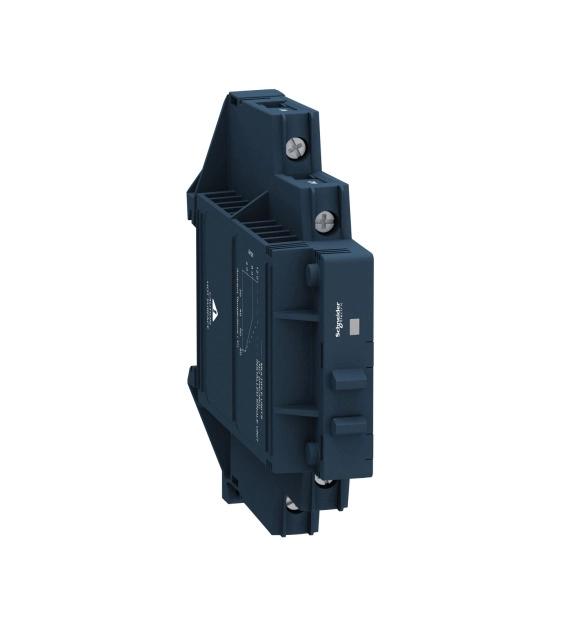

SCHNEIDER ELECTRIC Solid State Modular Relay, 12A, DIN, zero voltage switching, 4-32VDC, 48-600VAC
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000509
-
Modular version
TRUE
-
Rated operation current Ie at AC-53a
12
-
Rated operation current Ie at AC-51
12
-
Rated operation current Ie at AC-53b
12
-
Rated control supply voltage Us at DC
4
-
Rated operation current Ie at AC-1
12
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-3
12
-
Operating voltage
1
This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch
