СКУ: SR3B261B

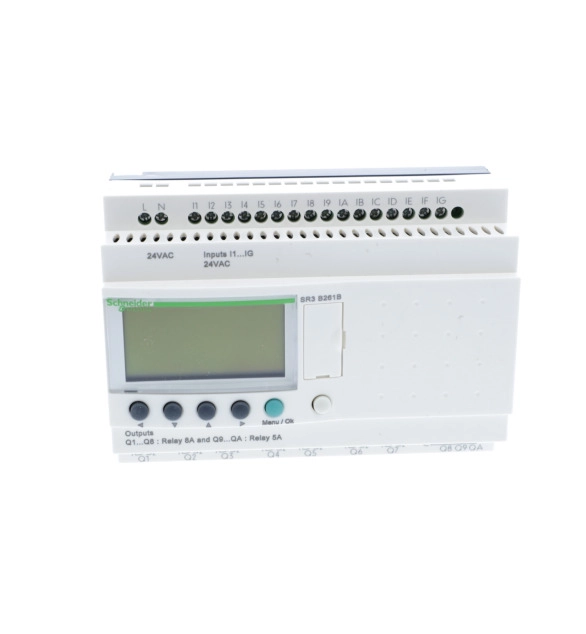

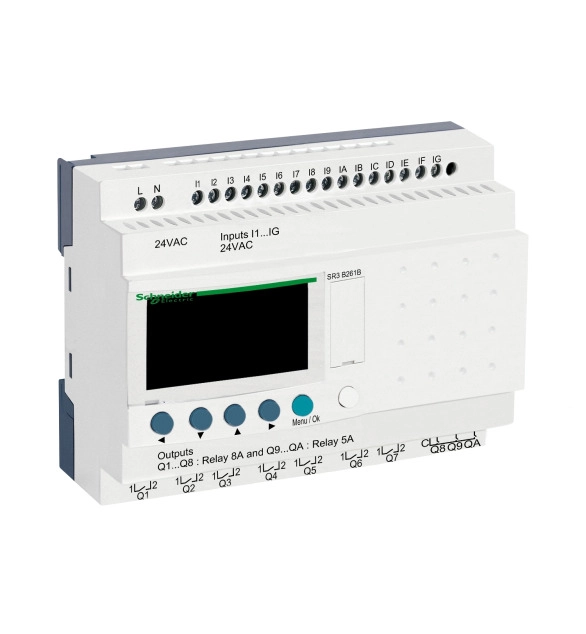

SCHNEIDER ELECTRIC Smart relay, Zelio Logic, 24 I/O, 24V AC, clock, display
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
With time switch clock
TRUE
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Height
90
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
With optical interface
FALSE
-
With display
TRUE
-
Number of HW-interfaces other
1
-
Voltage type of supply voltage
EV000509
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-232
1
-
Redundancy
FALSE
-
Number of digital inputs
16
-
Basic device
TRUE
-
With relay output
TRUE
-
Width
124.6
-
Depth
59.5
-
Expansion device
FALSE
-
Supply voltage AC 50 Hz
24
-
Front built-in possible
TRUE
-
Supply voltage AC 60 Hz
24
-
Switching current
8
-
Number of digital outputs
10
-
Number of analogue inputs
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces industrial Ethernet
-
Expandable
TRUE
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with a display and a clock, and checks program memory on each power-up. Zelio Logic controller makes automation easy. It offers 10 relay outputs with normally opened contact and 16 discrete inputs. Smart relay rated at 24V, draws up to 280mA and 7.5VA without extension, with IP20/IP40 protection. It weighs 0.4kg. Complies with EN/IEC standards for EMC and environmental resilience, including surge, electrostatic discharge, vibration, and power immunity tests. It is delivered in 1 package (PCE type). It is mounted on a 35mm DIN rail. Simple to select, install and program, Zelio Logic is suitable for all your applications. Easy to use, Zelio Logic offers a genuine alternative to solutions based on cabled logic or specialized cards.
