SCHNEIDER ELECTRIC Single phase power supply, 100-240V input, 24V DC output, 108W, 4.5A | Spark & Co
  • 3D
|

СКУ: ABL2REM24045K

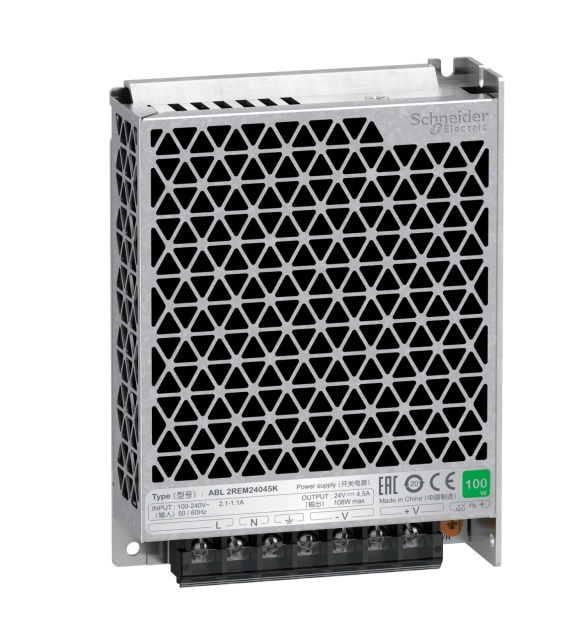

SCHNEIDER ELECTRIC Single phase power supply, 100-240V input, 24V DC output, 108W, 4.5A

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Degree of protection (IP)
    EV006405
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Suitable for safety functions
    FALSE
  • Rail mounting possible
    TRUE
  • Voltage type of supply voltage
    EV000460
  • Width
    97
  • Modular version
    FALSE
  • Depth
    30
  • Height
    129
  • Direct mounting possible
    TRUE
  • Secondary voltage adjustable
    FALSE
  • Short-circuit-proof
    FALSE
  • Nominal value output voltage 1
    24
  • Wall mounting possible
    FALSE
  • 1st secondary output voltage
    24
  • Rated supply voltage at AC 50 Hz
    100
  • Rated supply voltage at AC 60 Hz
    100
  • Output voltage stabilized
    FALSE
  • Nominal value output current 1
    4.5
  • Max. output current 1
    4.5
  • Stabilized
    FALSE
  • Power output
    100

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 100W, with a 100V to 240V AC output voltage, and 108W nominal power. Its output current is 4.5A. It offers better performance with cost effective. Its cooling is based on natural convection. It has an automatic voltage switching. Its overload hiccup protection is 110-160%. It measures 129mm wide x 97mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.
