SCHNEIDER ELECTRIC Safety module, Cat.4, potential free NC/NC, NO/NC, PNP/PNP, 24V AC/DC, screw /PO:41289590/

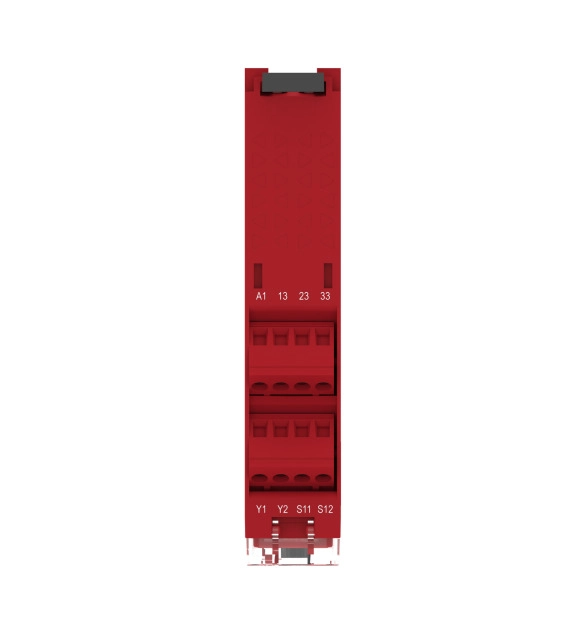

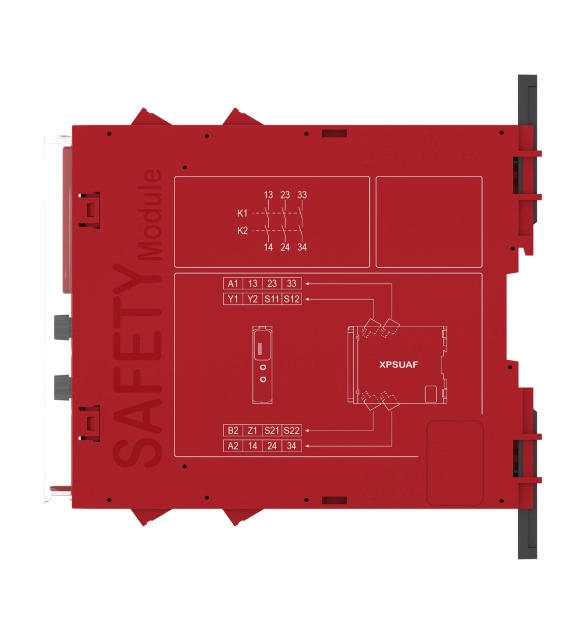

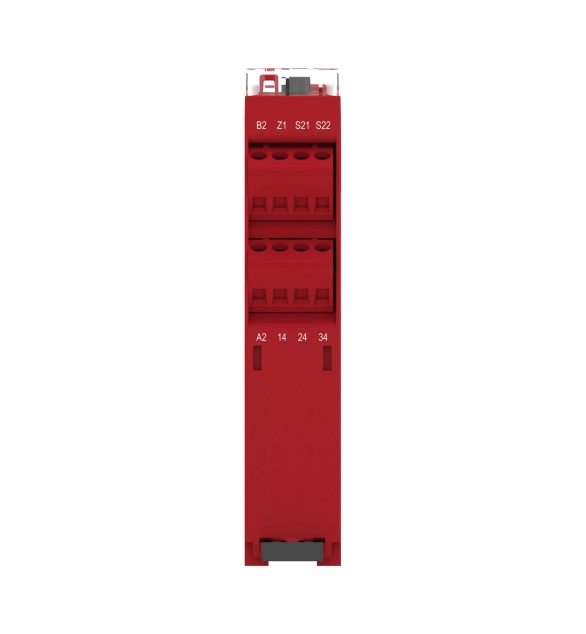

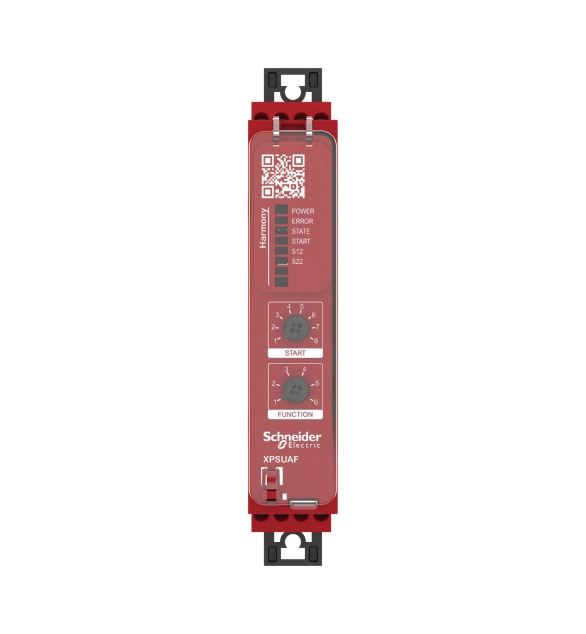

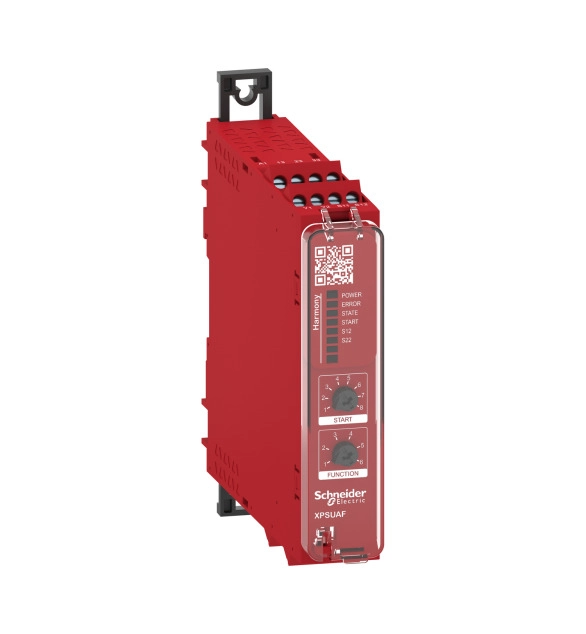

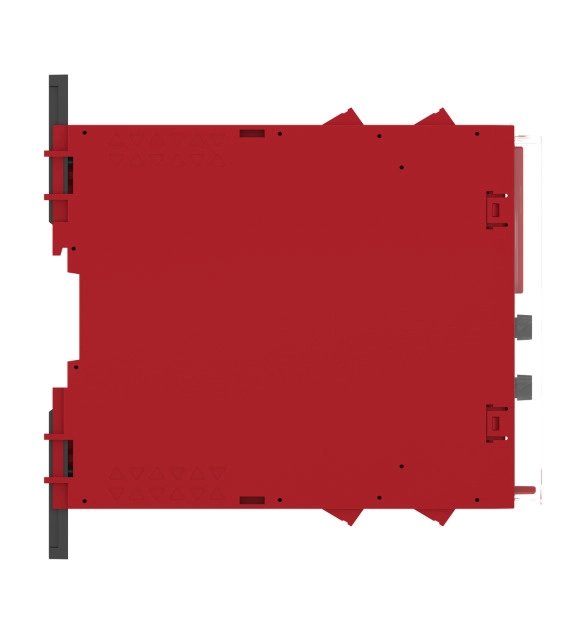

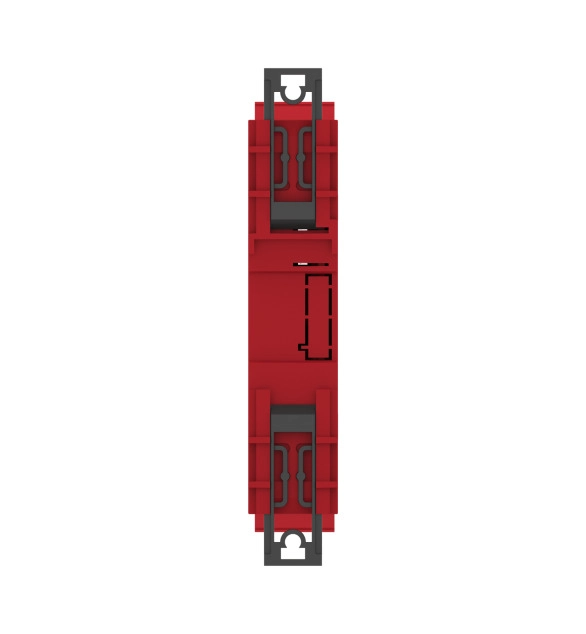

This product belongs to the Harmony XPS Universal safety modules range. It is a safety relay designed to monitor emergency stops, guard and safety switches, sensors, and light curtains. It is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. It embeds 2 safety inputs, 3 configurable pulsed outputs, 3 NO safety outputs, 1 solid-state diagnostic output (status info). It meets PLe (Cat. 4) per ISO 13849-1, SIL CL 3 per IEC 62061, and SIL 3 per IEC 61508. It weighs 0.200kg and measures 22.5mm (W) × 120mm (D) × 100mm (H). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. It conforms to IEC 60947-5-1, IEC 61508-1/2/3, ISO 13849-1, IEC62061, and is certified by cULus, TÜV, EAC, CCC, and KC. Harmony safety relays are compatible with Modicon logic controllers. It is sold individually. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Universal safety relays are ideal for managing single safety functions in machines with simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
