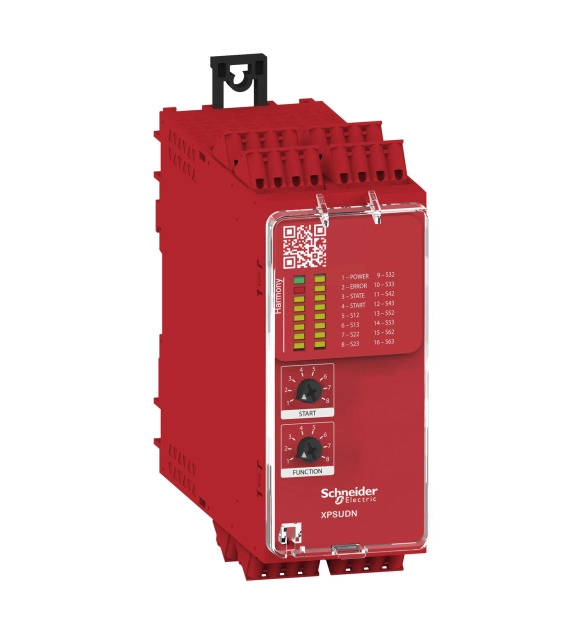

SCHNEIDER ELECTRIC Safety module, Cat 4, features 6 x XPSUAF, 24V AC or DC, spring

This product belongs to the Harmony XPSU range of safety relays. It monotors Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. It features 6 safety inputs, 7 ON/OFF configurable pulsed outputs, 3 NO, 1 NC safety outputs, and 1 solid-state diagnostic output with complete status information. The maximum safety level is PLe category4 (ISO 13849-1), SIL CL3 (IEC 62061), SIL3 (IEC 61508). It weighs 0,350kg and measures 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. It conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal relays simplify single safety function management for machines of low to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
