СКУ: LC2D09BD

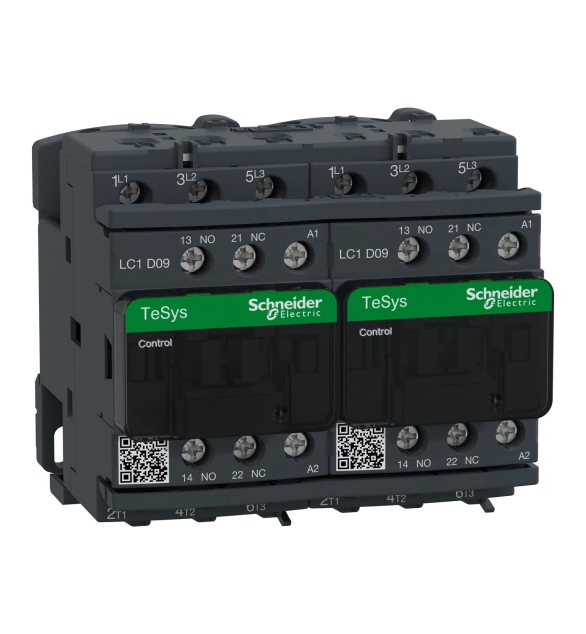

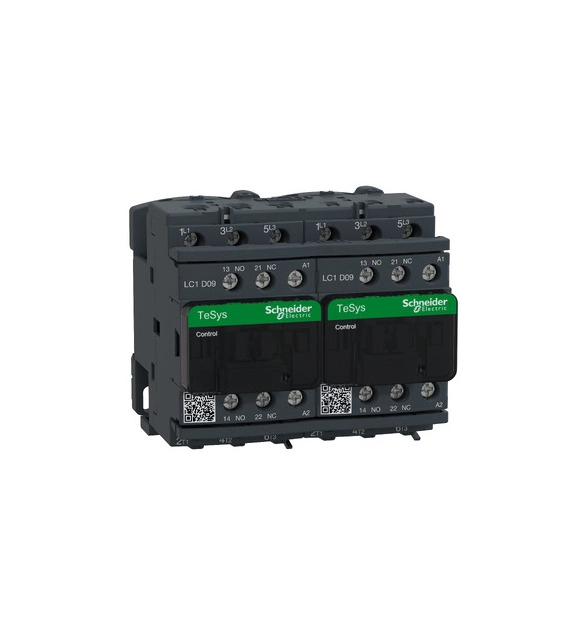

SCHNEIDER ELECTRIC Reversing Contactor 3P(3NO), AC-3 <=440V, 9A, 24VDC, with electrical interlocking
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated operation power at AC-3, 400 V
45
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
125
-
Rated operation current Ie at AC-3, 400 V
95
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/440V AC-3/3e (11kW/400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
