СКУ: ABLM1A24025

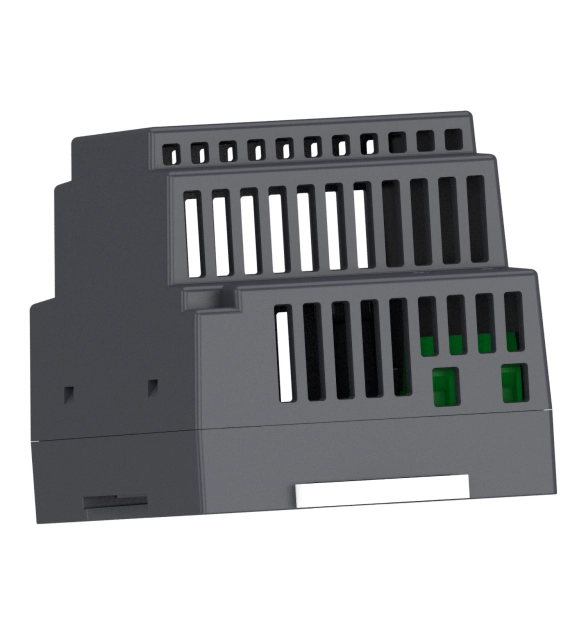

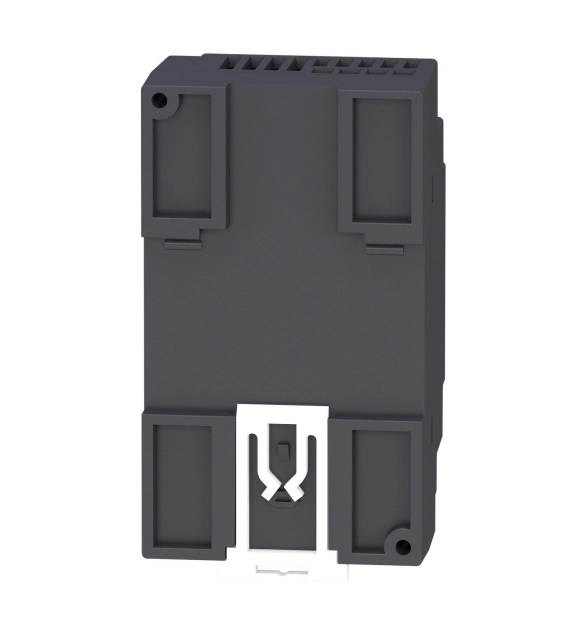

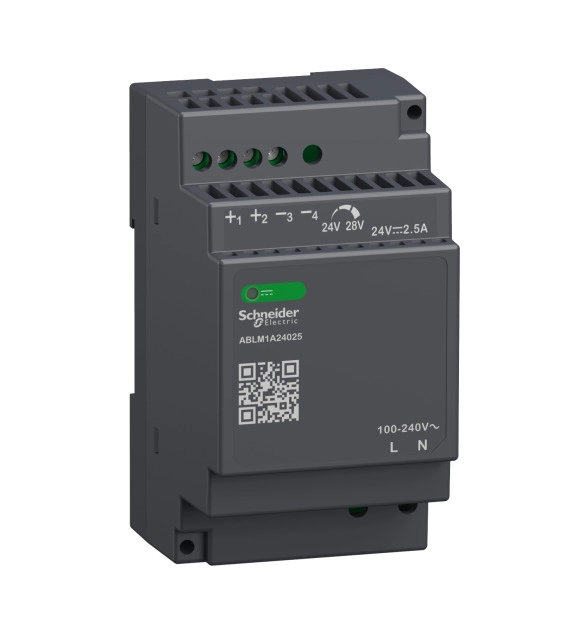

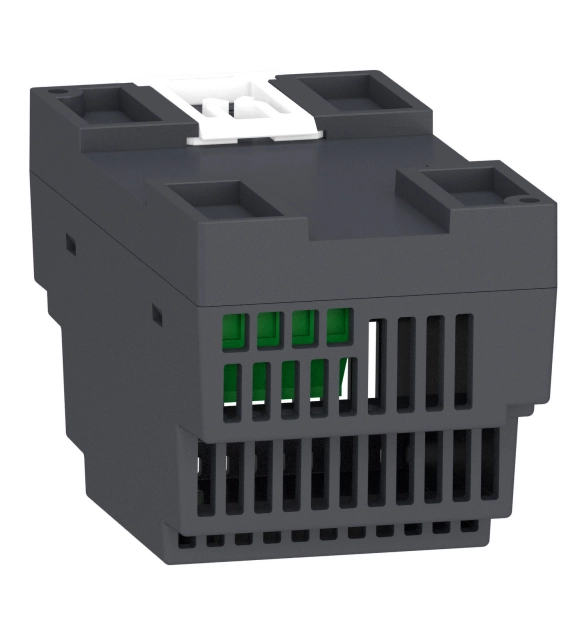

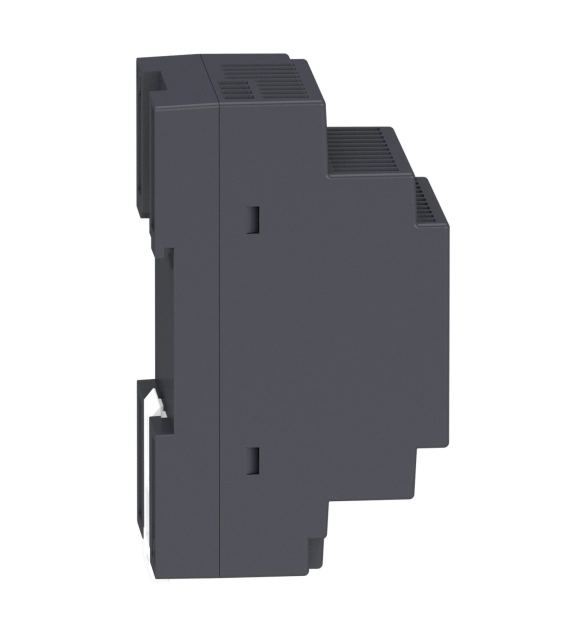

SCHNEIDER ELECTRIC Regulated power supply, 100-240V AC, 24V 2.5 A, single phase, modular
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Height
75
-
Depth
100
-
Width
45
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Built-in width
45
-
Modular version
FALSE
-
Suitable for safety functions
TRUE
-
Stabilized
TRUE
-
Secondary voltage adjustable
FALSE
-
Direct mounting possible
FALSE
-
Short-circuit-proof
FALSE
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
Rated supply voltage at AC 50 Hz
100
-
Rated supply voltage at AC 60 Hz
100
-
Output voltage stabilized
FALSE
-
1st secondary output voltage
100
-
Built-in height
75
-
Power output
91.2
-
Nominal value output current 1
3.8
-
Max. output current 1
3.8
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a economy sub-base with IP20 degree of protection. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by EAC. It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
