СКУ: CCT15553

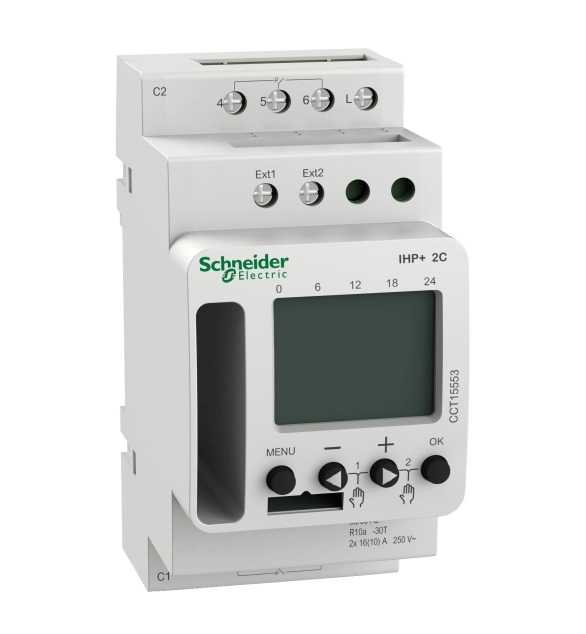

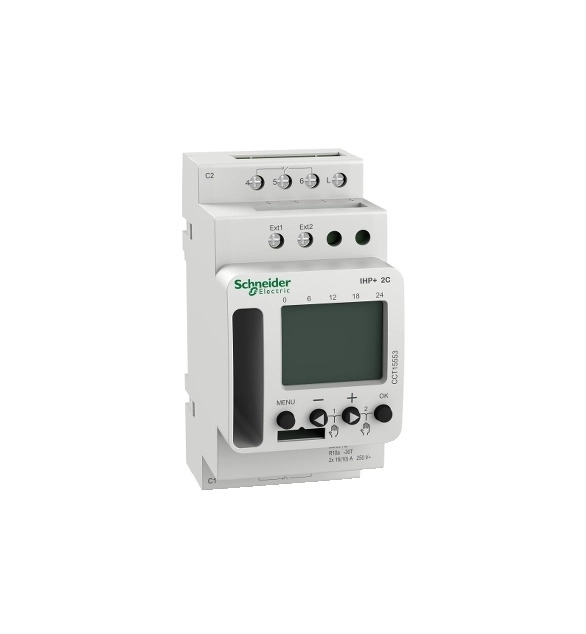

SCHNEIDER ELECTRIC Programmable time switch SMARTw Acti9 IHP+ 2C (24h/7d)
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Mounting method
EV000242
-
Width in number of modular spacings
2
-
Height
90
-
Voltage type of supply voltage
EV000460
-
Supply voltage
230
-
Suitable for manual operation
TRUE
-
Potential free switch contact
TRUE
-
Nominal switching current at 250 V AC
16
-
Number of channels
1
-
Frequency supply voltage
50
-
24 h program
TRUE
-
Weekly program
TRUE
-
Radio-controlled
FALSE
-
Automatic switching summer-/winter time
TRUE
-
External programming
TRUE
-
Impulse program
TRUE
-
Hour meter
TRUE
-
Cycle program
TRUE
-
Quartz controlled
TRUE
-
With memory card
FALSE
-
Mains synchronous
TRUE
-
Holiday program
TRUE
-
Autonomy in years
10
-
External pushbutton input
TRUE
-
Astro program
FALSE
-
60 min program
TRUE
-
Text guidance in display
TRUE
-
Switching preselection
FALSE
-
Radio-controlled (DCF77)
TRUE
-
GPS (global positioning system)
TRUE
-
Shortest switching time channel 1
0.02
-
Width
35.8
-
Random program
FALSE
-
Number of memory locations
300
-
Depth
63
-
Annual program
TRUE
IHP+ SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 1 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily
