СКУ: PKF16W434

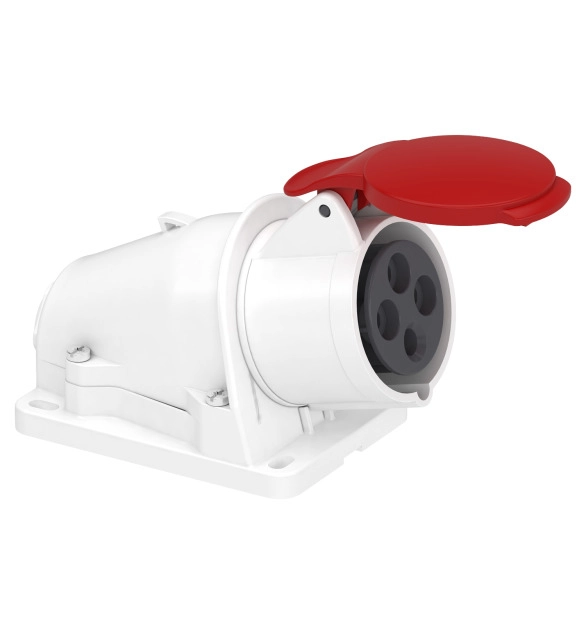

SCHNEIDER ELECTRIC PratiKa socket, screw, angled, 16A, 3P+E, 380..415V AC, wall
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
RAL-number
7035
-
Connection system
EV001008
-
Voltage according to EN 60309-2
EV011415
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Angle of plug
EV000164
-
IEC-amperage
16
-
Cable entry
EV000154
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 87mm x (H) 87mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
