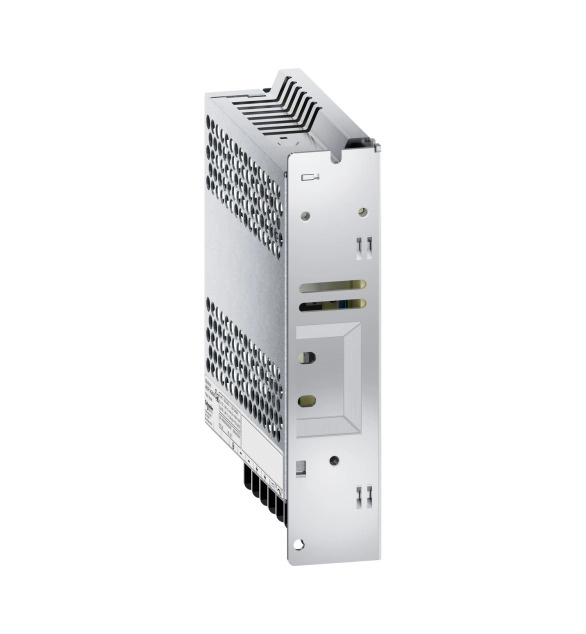

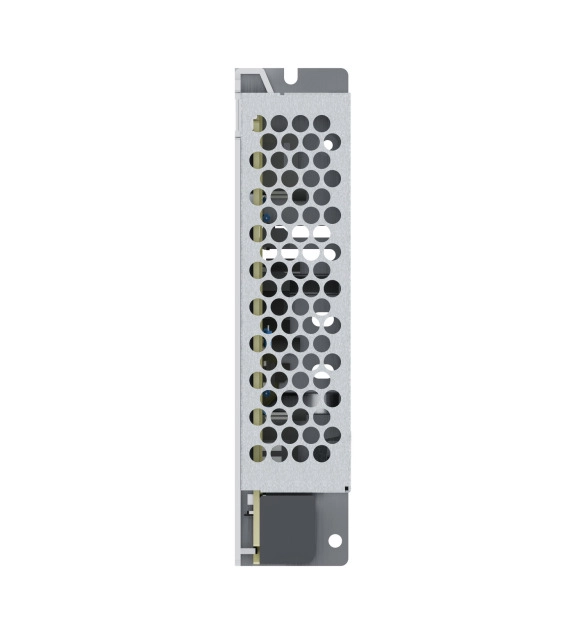

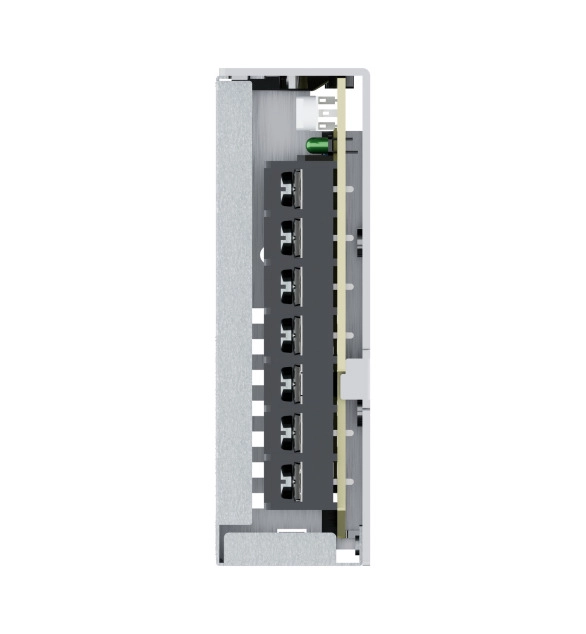

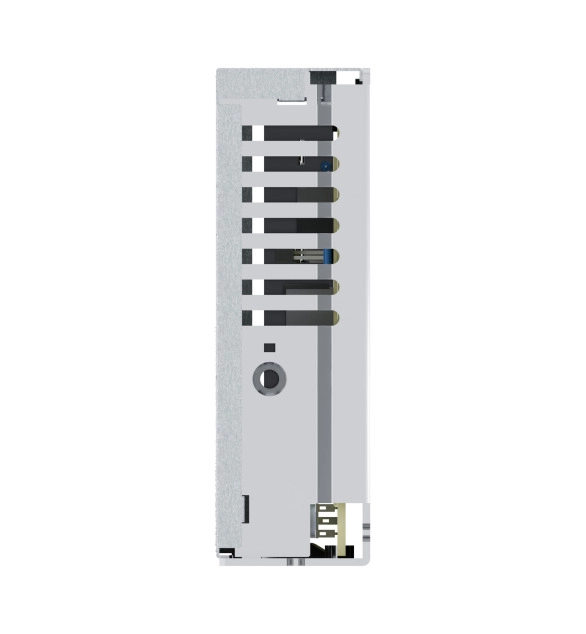

SCHNEIDER ELECTRIC Power Supply - 100..240V AC, 24V 4.5A, single phase, panel mount

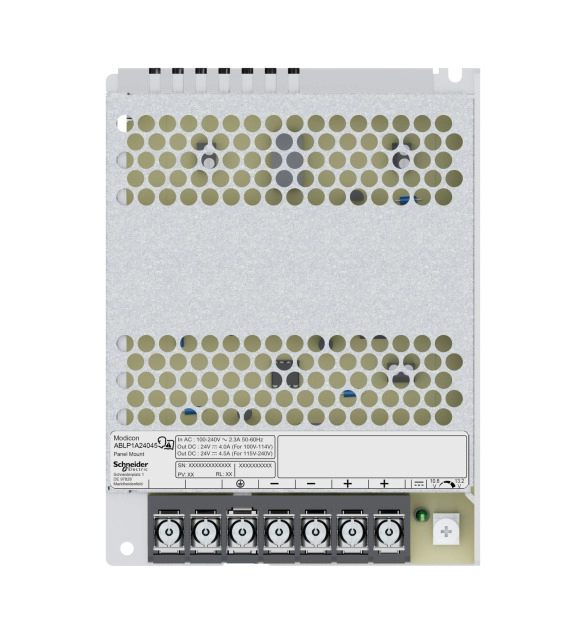

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 240V AC, a rated output current of 4,17A at 12V DC and a rated power output of 50W. It supplies control circuits in industrial and building automation. This power supply has a protection against overload and short-circuit. It operates from minus 25degrees celcius to plus 70degrees celcius, and from 0meter to 2000meters or 5000meters with derating. It measures 91mm high, 53mm wide and 55.6mm deep. It weighs 0.221kg It is a power supply for industrial use. It conforms to CE, CB Scheme, cULus Listed, cURus Recognized, RCM, EAC, UKCA, KC, and to IEC/EN 62368-1, IEC/EN 61010-1, UL/CSA 61010-1/2 standards. Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. Type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
