СКУ: VW3M5101R15

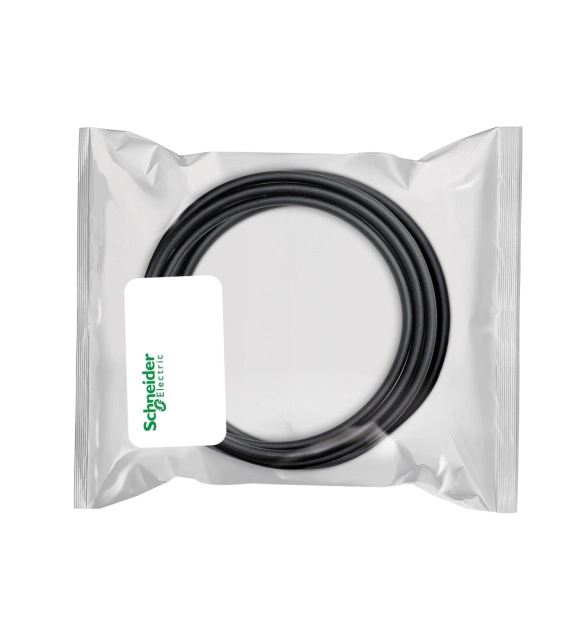

SCHNEIDER ELECTRIC Power cable - between servomotor BDH, BSH and servodrive, 4x1.5mm²+2x1mm², 8m
-
Brand
Schneider Electric
-
Frequency
50
-
Degree of protection (IP)
EV000154
-
Euro class acidity according to EN 13501-6
EV000494
-
Connection 1
EV000154
-
Connection 2
EV000154
-
With protective conductor
FALSE
-
Spiralized cable
FALSE
-
Smoke development class according to EN 13501-6
EV000494
-
Reaction-to-fire class according to EN 13501-6
EV000494
-
With cord switch
FALSE
-
Euro class flaming droplets/particles according to EN 13501-6
EV000494
-
Material outer sheath
EV000154
-
Oil resistant (according to EN 60811-404)
FALSE
-
Connector system system-oriented
FALSE
-
Length
1.5
-
Number of cores
6
-
Colour outer sheath
EV000154
-
Nominal voltage
200
-
Temperature resistance
-40
-
Nominal cross section conductor
1.5
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a preassembled shielded power motor cordset for BMH servo motors. It is equipped with an 8-pole M23 circular connector on the motor side, the other cable end has free leads. The power cable's shield serves as electromagnetic compatibility protection. The wire section is 4x 1.5squaremm and 2x 1squaremm. It measures 1.5m long and it weighs 0.6kg. It is a connection accessory to the BMH servo motors. This product is certified by BV, CSA, DNV, EAC, GL, LROS, UL and GL. It is compatible with servo motor types BMH070, BMH100 and BMH1401. This is a preassembled shielded power motor cable for BMH servo motors. It plugs into the power connector of BMH servo motors. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
