СКУ: XA2EVM8LC

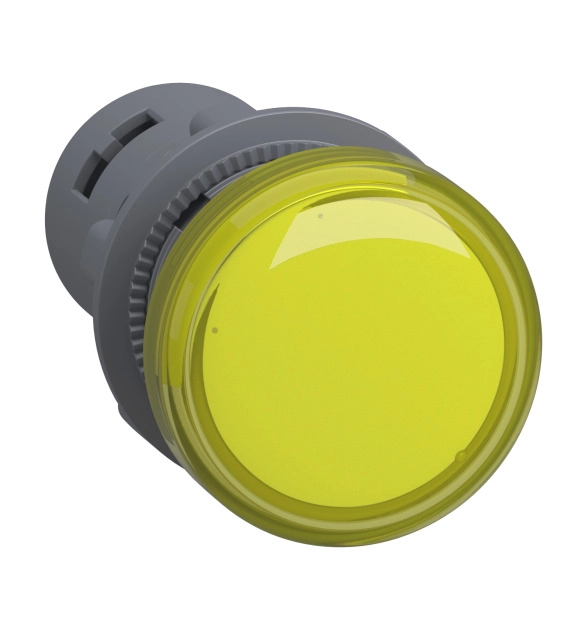

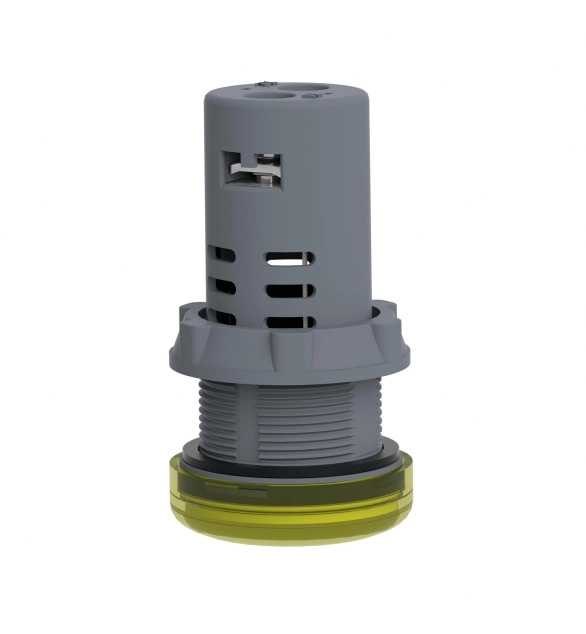

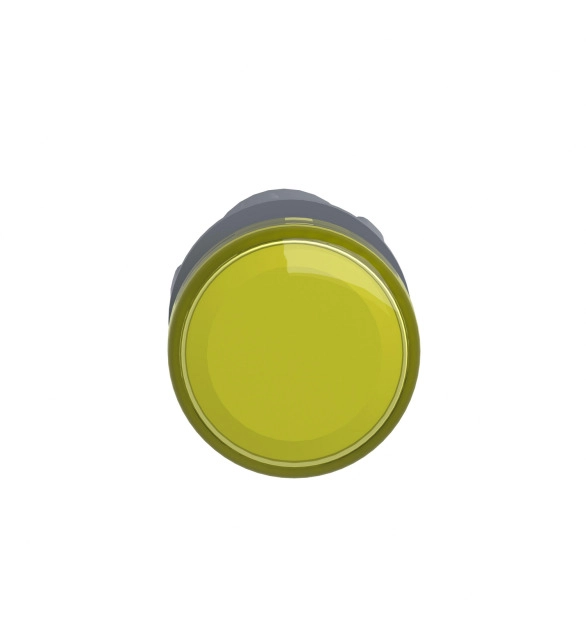

SCHNEIDER ELECTRIC Pilot light, plastic, yellow, Ø22mm, with integral LED, 220-230VAC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006421
-
Voltage type
EV000460
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Colour front ring
EV000206
-
Rated operating voltage Ue
220
-
With light source
TRUE
-
Type of lens
EV000880
-
Number of indicator lights
1
-
Type of lamp socket
EV000432
-
Colour lens
EV000234

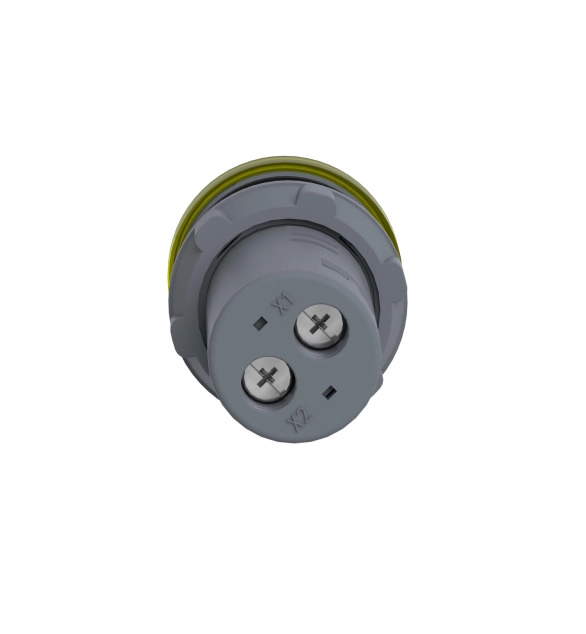

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic yellow pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 220V to 230V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
