СКУ: ABE7H16R31

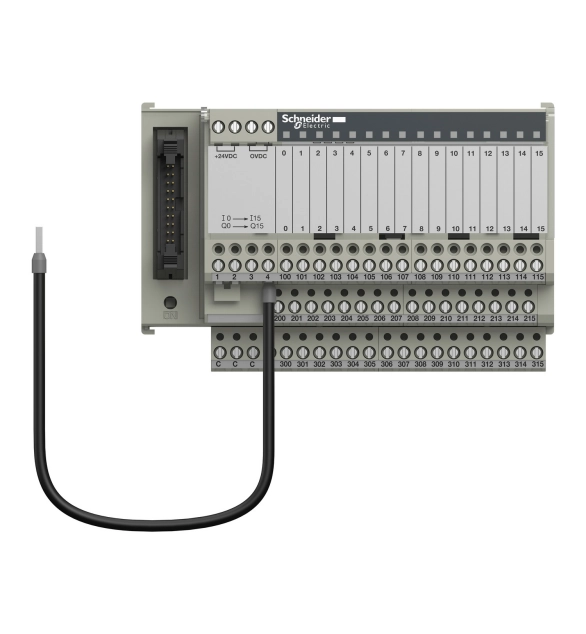

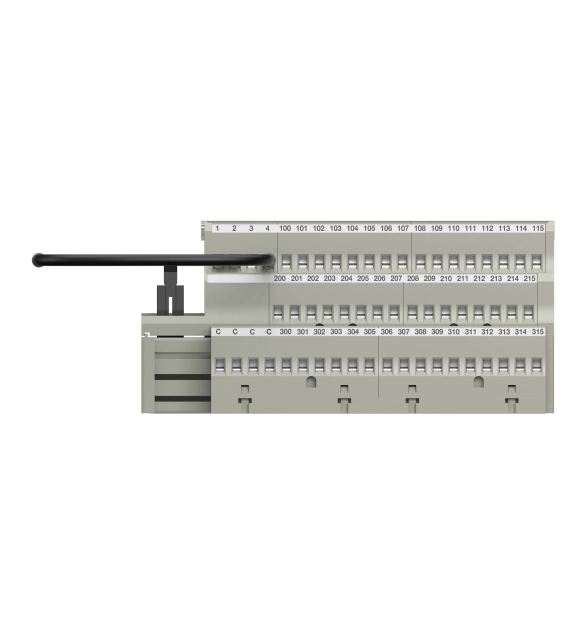

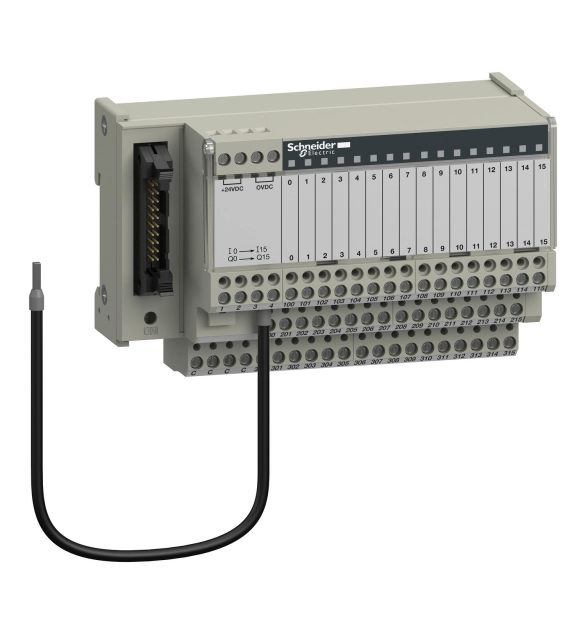

SCHNEIDER ELECTRIC Passive connection sub-base ABE7, HS code: 85381000,COO: LV, 0.36kg
-
Brand
Schneider Electric
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Height
70
-
With LED indication
TRUE
-
Degree of protection (IP)
EV006409
-
With potential separation
FALSE
-
Operating temperature
-5
-
Operating voltage
24
-
Material of contact surface
EV000154
-
Rated voltage
24
-
Depth
67
-
Width
125
-
Colour housing
EV000270
-
Thread sleeves sensor/actuator slots
EV000154
-
Material insulation body
EV000154
-
Type of branches for sensor-/actuator cables
EV000154
-
Fix cable version suitable for cable guide chain
FALSE
-
Number of sensor-/actuator-slots
1
-
Material contact body
EV009430
-
Connectable conductor cross section
0.09
-
Diameter contact female
2.5
-
Material housing
EV001011
-
Pollution degree
EV000600
-
Cable length configurable
TRUE
-
Cable outer diameter for cable gland
0.09
-
Connection for NPN-sensors
TRUE
-
Max. current carrying capacity per socket
1.8
-
Max. total current
1.8
-
Max. current carrying capacity per I/O signal
0.5
-
Number of poles sensor/actuator slots
16
-
Number of channels per connector slot
16
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This passive discrete I/O sub base offers 16 channels and 3 terminals per channel. It is a passive connection sub base with rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 125mm and it weighs 0.346kg. It is suitable for all types of industrial applications. This product is certified by BV, CSA, DNV, EAC, GL, LROS, UL and GL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
