СКУ: ABE7H20E200
SCHNEIDER ELECTRIC Passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Degree of protection (IP)
EV000154
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
With LED indication
FALSE
-
With potential separation
FALSE
-
Material of contact surface
EV000154
-
Colour housing
EV000154
-
Connection for NPN-sensors
FALSE
-
Thread sleeves sensor/actuator slots
EV000154
-
Pollution degree
EV000599
-
Cable length configurable
FALSE
-
Material insulation body
EV000154
-
Type of branches for sensor-/actuator cables
EV000154
-
Fix cable version suitable for cable guide chain
FALSE
-
Operating temperature
20

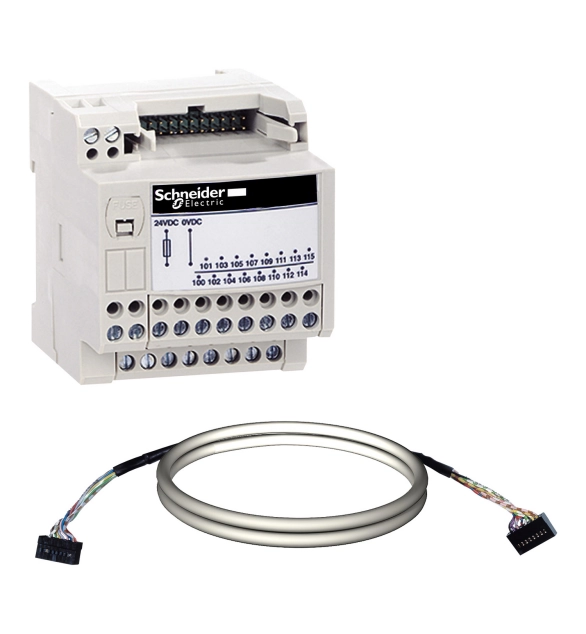

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a kit containing one passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel, and one cordset to connect to the plc. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a economy sub-base with IP20 degree of protection. The cordset measures 2m long. The kit weighs 0.410kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by EAC. It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules. Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
