СКУ: 26970
SCHNEIDER ELECTRIC Padlocking device - for toggle, set of 2
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as reversing switch
FALSE
-
Suitable for front mounting centre
TRUE
-
Max. rated operation voltage Ue AC
690
-
Voltage release optional
FALSE
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Version as emergency stop installation
TRUE
-
Colour control element
EV000233
-
Number of poles
4
-
Number of auxiliary contacts as change-over contact
2
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Rated permanent current Iu
160
-
Rated operation power at AC-23, 400 V
75
-
Rated permanent current at AC-23, 400 V
160
-
Rated short-time withstand current lcw
8.5
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact

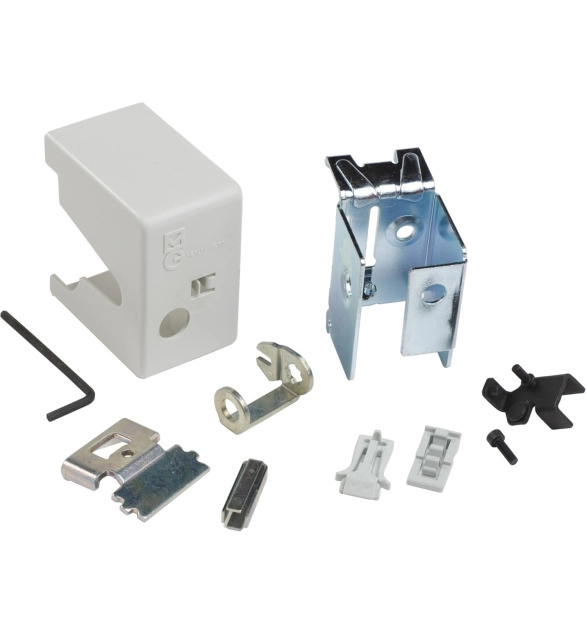

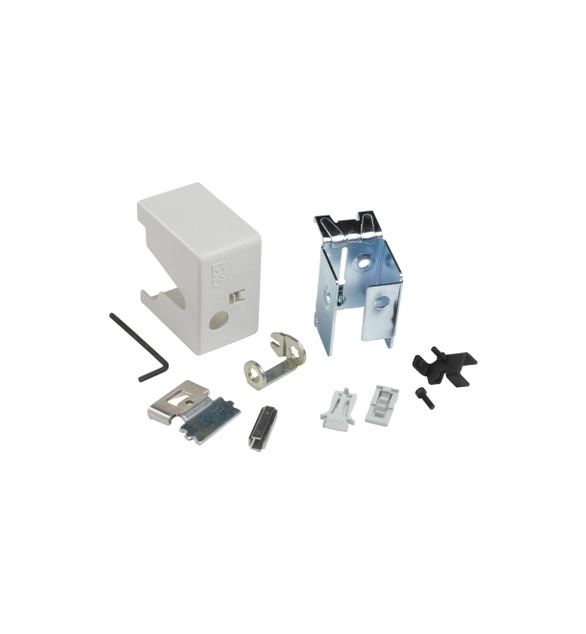

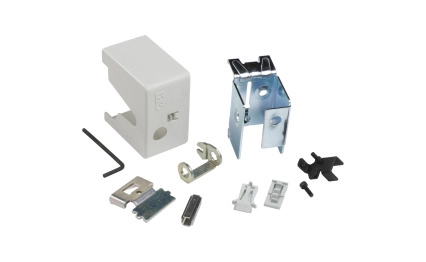

This Acti9 accessory is a rotary handle mechanism for modular devices with front or side mounting installation. It is dedicated to 2P (C60H-DC), 3P or 4P (DPN, DPN Vigi), 2P or 3P or 4P (C60, C120, C120NA-DC, C120 + Vigi C120, iSW at more than four 9mm pitches). This rotary handle mechanism is mounted on the circuit breaker. This subassembly mechanism can be associated with a removable extended handle (ref. 27047) or a fixed handle (ref. 27048). It is a set of 1 device. The color of the handle is white. The material is a self-extinguishing thermoplastic specially developed by Schneider Electric. The degree of protection of the rotary button is IP40 and IK10.
