СКУ: TCSESB083F23F0

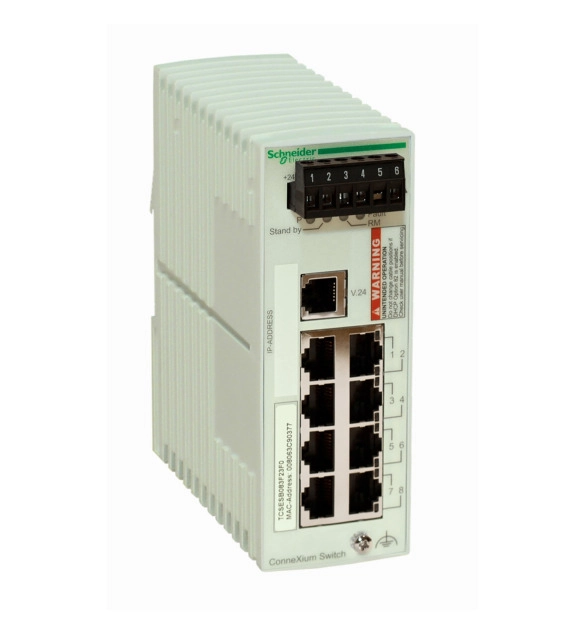

SCHNEIDER ELECTRIC Network switch, Modicon Networking, basic managed, 8 ports for copper
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width
47
-
Power over Ethernet (PoE)
EV000154
-
Compatible with Grade2TV according to XP-C 90-483
FALSE
-
Compatible with Grade3TV according to XP-C 90-483
FALSE
-
Height
131
-
Manageable
TRUE
-
Layer 2
FALSE
-
Layer 3
FALSE
-
Number of ports 10/100 Mbps RJ45
8
-
Mounting method
EV000941
-
Ethernet
FALSE
-
Depth
111
-
Number of ports 100 Mbps SC
-
Number of other ports
-
Number of ports 10 Gbps RJ45
-
Number of ports 100 Gbps Mini GBIC
-
Number of ports 40 Gbps Mini GBIC
-
Number of ports 1000 Mbps GBIC
-
Number of ports 10/100 Mbps M12
-
Number of ports 10/100/1000 Mbps RJ45
-
Number of ports 100 Mbps POF
-
Number of ports 1000 Mbps Mini GBIC
-
Number of ports 1000 Mbps SC (SX)
-
Number of combination-ports RJ45/Mini GBIC
-
Number of ports 100 Mbps ST
-
Number of ports 1000 Mbps RJ45
-
Number of max. stackable switches
-
Max. PoE power
-
Number of ports 100/1000 Mbps Mini GBIC
-
Number of ports 1000 Mbps SC (LX)
-
Number of module slots
-
Number of ports 1000 Mbps POF
-
Number of ports PoE
-
Number of ports 10 Gbps Mini GBIC
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 6W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection. Its dimensions are 47mm (width) x 131mm (height) x 111mm (depth) and weighs 0.40 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
