СКУ: RM35TF30

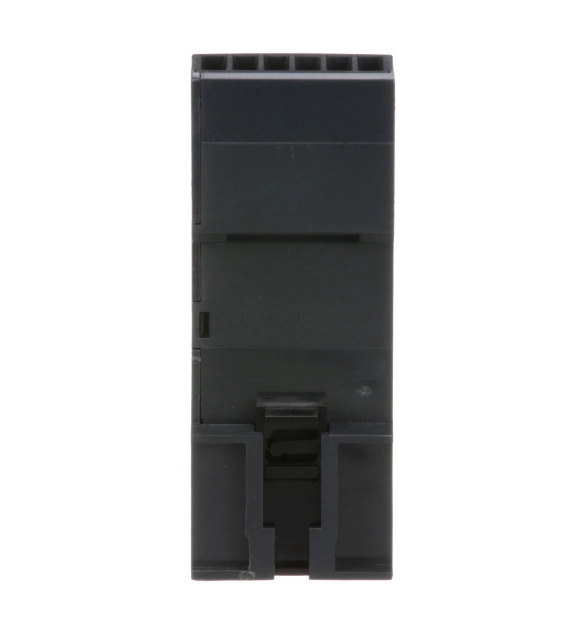

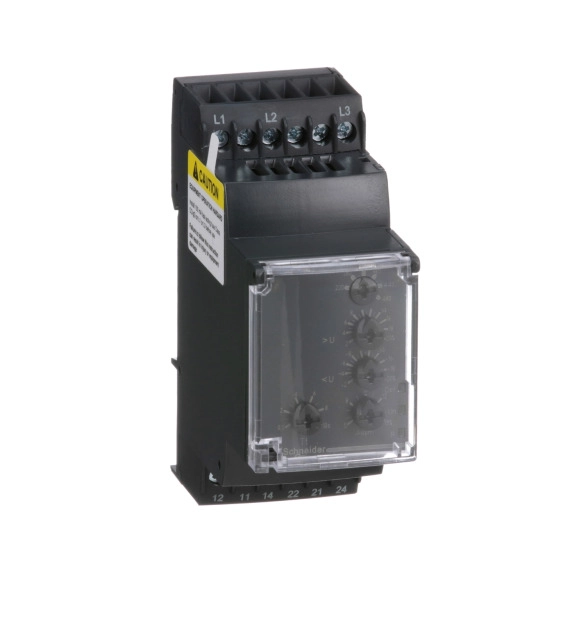

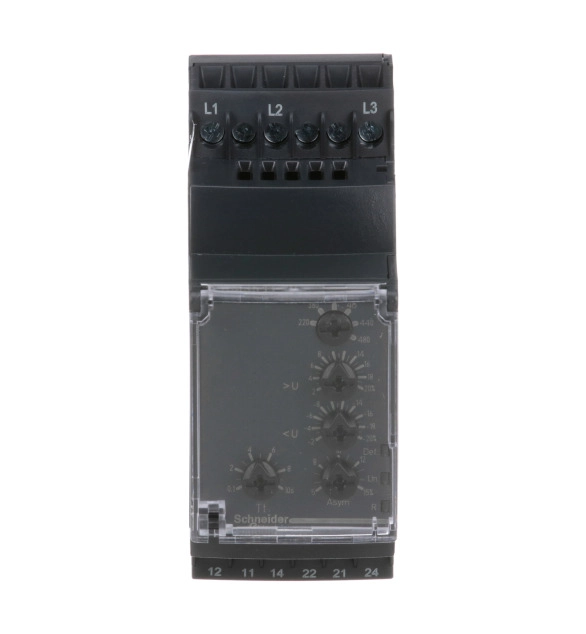

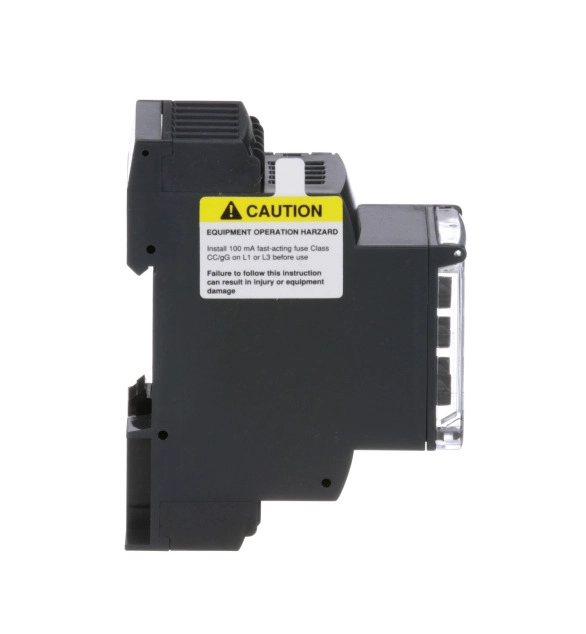

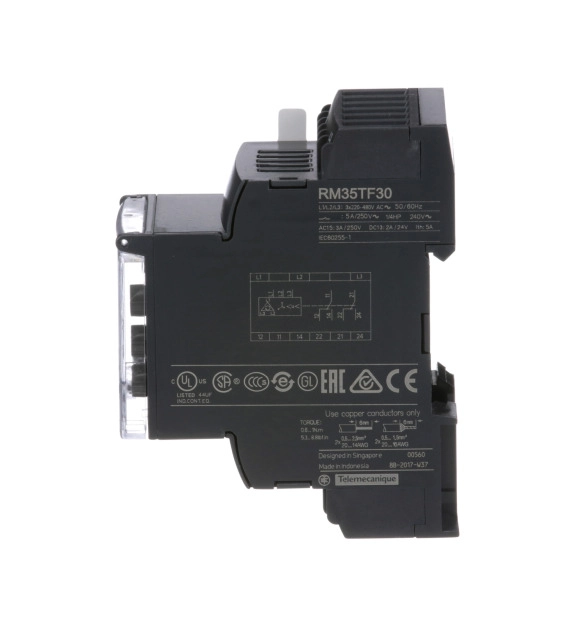

SCHNEIDER ELECTRIC Multifunction 3 phase supply control relay, 5A, 2CO, 220-480V AC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
With detachable clamps
FALSE
-
Voltage type for actuating
EV000509
-
Height
90
-
Number of contacts as change-over contact
2
-
Width
35
-
Phase sequence monitoring
TRUE
-
Phase failure detection
TRUE
-
Function under voltage detection
TRUE
-
Function over voltage detection
TRUE
-
Phase imbalance monitoring
TRUE
-
Max. permitted off-delay time
10
-
Min. adjustable off-delay time
0.1
-
Max. permitted delay-on energization time
0.65
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Voltage measuring range
194
This Harmony RM35-T multi function control relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
