SCHNEIDER ELECTRIC Motor mechanism 440/480VAC 60Hz, HS code: 85012000, COO: IT, 19.8kg /PO:41073216/ | Spark & Co
  • 3D
|

СКУ: LV432647

SCHNEIDER ELECTRIC Motor mechanism 440/480VAC 60Hz, HS code: 85012000, COO: IT, 19.8kg /PO:41073216/

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Type of switch drive
    EV003983
  • Rated control supply voltage Us at AC 50HZ
    440
  • Rated control supply voltage Us at AC 60HZ
    440

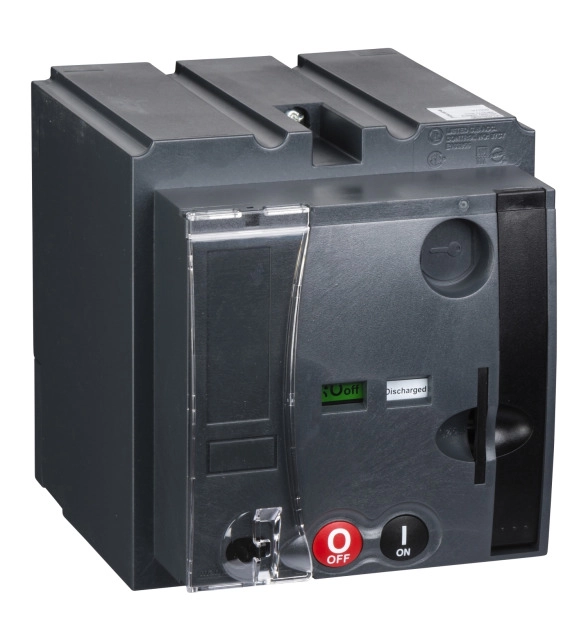

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 440VAC to 480VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
