СКУ: GV4L80B

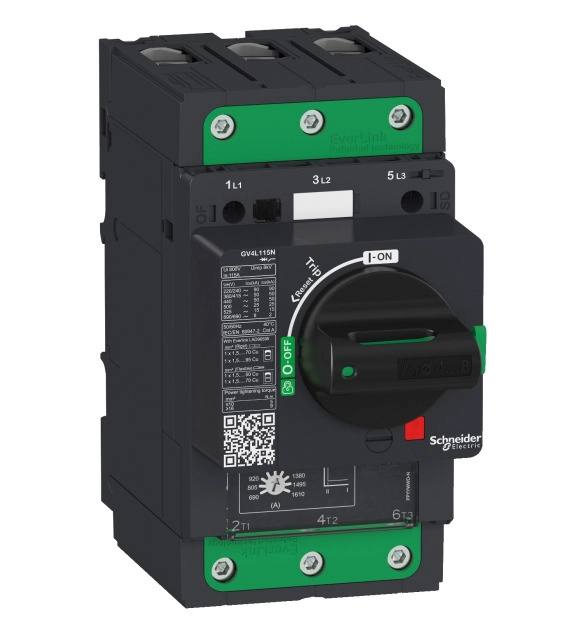

SCHNEIDER ELECTRIC Motor circuit breaker, TeSys GV4, 3P, 80A, 25kA, magnetic, EverLink terminals

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Rated permanent current Iu
    25
  • Rated operation power at AC-3, 400 V
    11
  • Type of control element
    EV000092
  • Degree of protection (IP)
    EV006415
  • With integrated under voltage release
    FALSE
  • With integrated auxiliary switch
    FALSE
  • Switch off technique
    EV006116
  • With thermal protection
    FALSE
  • Device construction
    EV009311
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50
  • Rated operation power at AC-3, 230 V
    5.5
  • Width
    81
  • Depth
    165
  • Phase failure sensitive
    FALSE
  • Height
    155
  • Adjustment range undelayed short-circuit release
    150

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW at 400V. It provides magnetic protection, breaking capacity Icu 50kA at 400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine).
