СКУ: GV4P115N

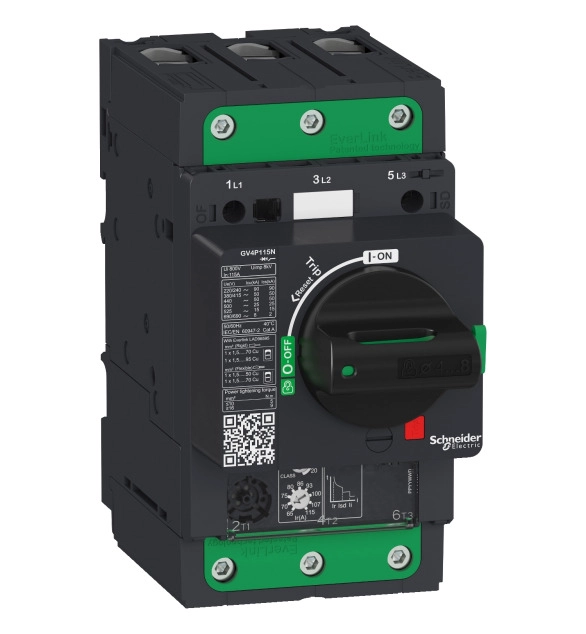

SCHNEIDER ELECTRIC Motor circuit breaker, TeSys GV4, 3P, 115A, 50kA, thermal magnetic, Everlink
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Type of control element
EV000092
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
With thermal protection
TRUE
-
Width
81
-
Depth
165
-
Height
155
-
Switch off technique
EV000101
-
Rated operation power at AC-3, 400 V
55
-
Rated permanent current Iu
115
-
Rated operation power at AC-3, 230 V
30
-
Overload release current setting
65
-
Adjustment range undelayed short-circuit release
1955
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW at 400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA at 400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
