SCHNEIDER ELECTRIC Motor circuit breaker GV2, 3P, 4A | Spark & Co
  • 3D
|

СКУ: GV2LE08

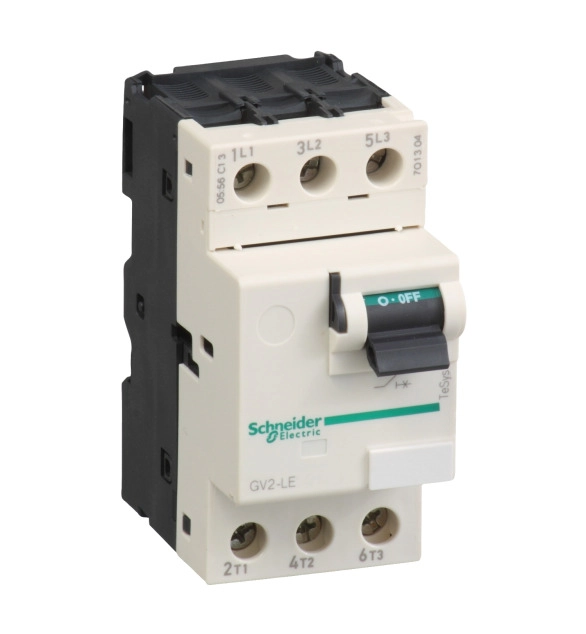

SCHNEIDER ELECTRIC Motor circuit breaker GV2, 3P, 4A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006405
  • With integrated under voltage release
    FALSE
  • Width
    45
  • Rated operation power at AC-3, 400 V
    1.5
  • With integrated auxiliary switch
    FALSE
  • Rated permanent current Iu
    4
  • Switch off technique
    EV006116
  • Rated operation power at AC-3, 230 V
    0.75
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • With thermal protection
    FALSE
  • Device construction
    EV009311
  • Adjustment range undelayed short-circuit release
    51
  • Type of control element
    EV001252
  • Depth
    78.5

TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW/400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA/400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
