СКУ: GV3L40

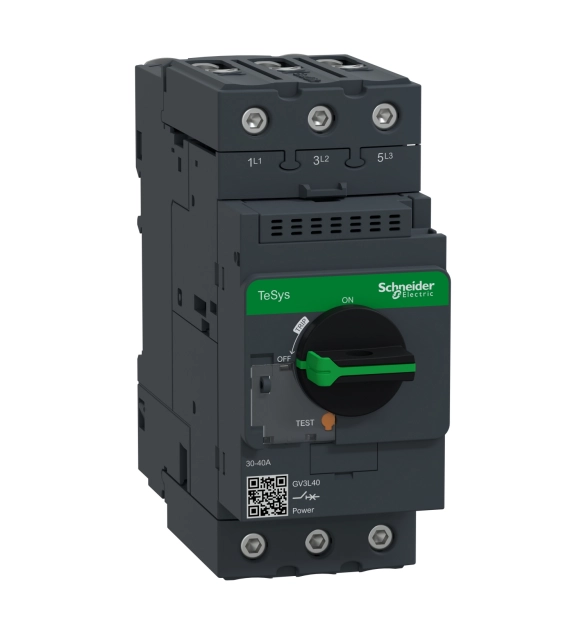

SCHNEIDER ELECTRIC Motor circuit breaker, 3P, 40A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
18.5
-
Number of poles
3
-
Rated operating voltage
690
-
Rated permanent current Iu
40
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000092
-
With integrated under voltage release
FALSE
-
Width
55
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Phase failure sensitive
TRUE
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Depth
136
-
Height
132
-
Rated operation power at AC-3, 230 V
11
-
Adjustment range undelayed short-circuit release
560
TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW/400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA/400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD340 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
