СКУ: GV2ME07

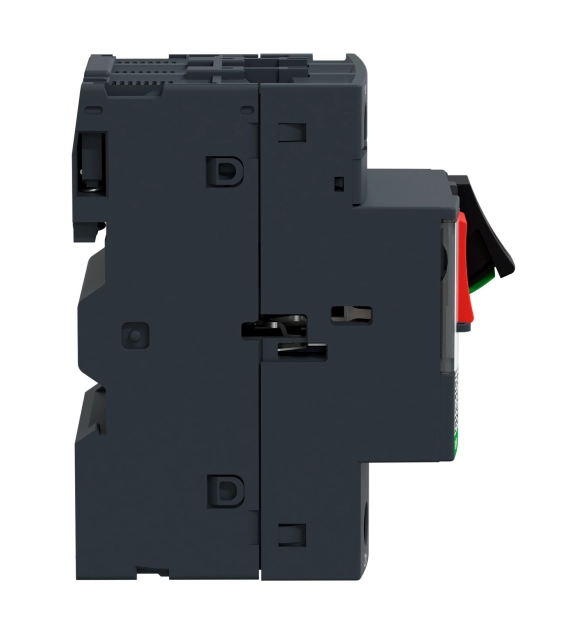

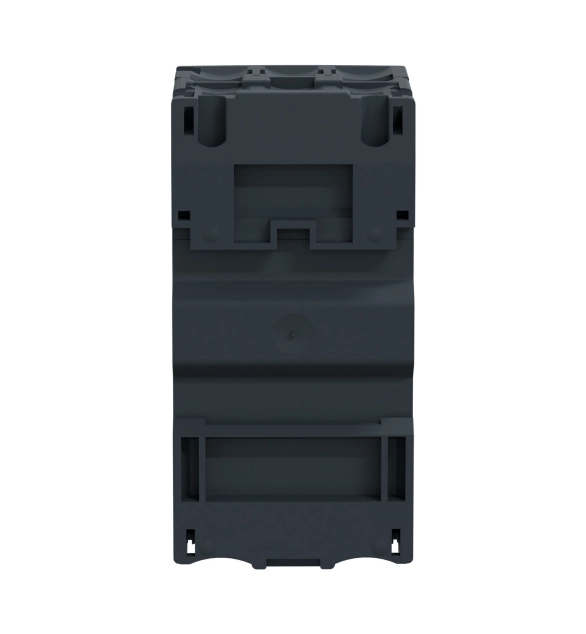

SCHNEIDER ELECTRIC Motor circuit breaker, 3P, 1.6-2.5A, thermal magnetic, button control
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operation power at AC-3, 400 V
7.5
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000554
-
With integrated under voltage release
FALSE
-
Width
45
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Height
89
-
Device construction
EV009311
-
Rated permanent current Iu
18
-
Rated operation power at AC-3, 230 V
4
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Rated operating voltage
230
-
Overload release current setting
13
-
Adjustment range undelayed short-circuit release
223
-
Depth
78.2
-
Rated short-circuit breaking capacity lcu at 400 V, AC
15
TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW/400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA/400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
