СКУ: GV2ME04

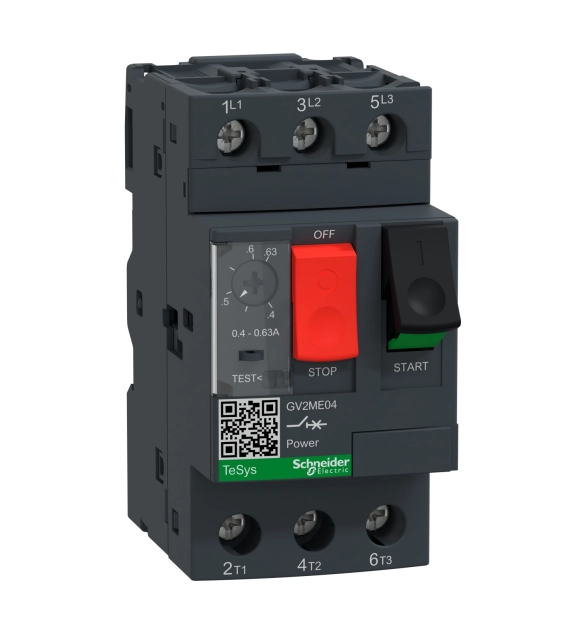

SCHNEIDER ELECTRIC Motor circuit breaker, 3P, 0.4-0.63A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Degree of protection (IP)
    EV006405
  • Type of control element
    EV000554
  • With integrated under voltage release
    FALSE
  • Width
    45
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • Device construction
    EV009311
  • Switch off technique
    EV009462
  • With thermal protection
    TRUE
  • Rated operation power at AC-3, 400 V
    0.18
  • Rated permanent current Iu
    0.63
  • Rated operation power at AC-3, 230 V
    0.09
  • Adjustment range undelayed short-circuit release
    8
  • Rated operating voltage
    230
  • Depth
    78.2
  • Overload release current setting
    0.4

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, front face reduced, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on RH side of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
