СКУ: GV2ME036

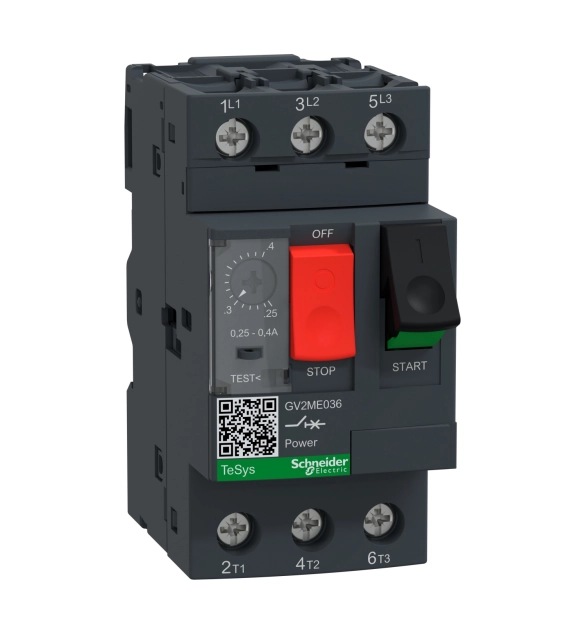

SCHNEIDER ELECTRIC Motor circuit breaker, 3P, 0.25-0.4A, thermal magnetic, lugs terminals

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006405
  • Type of control element
    EV000554
  • With integrated under voltage release
    FALSE
  • Width
    45
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • Device construction
    EV009311
  • Switch off technique
    EV009462
  • With thermal protection
    TRUE
  • Rated operation power at AC-3, 400 V
    0.09
  • Rated permanent current Iu
    0.4
  • Rated operation power at AC-3, 230 V
    0.06
  • Adjustment range undelayed short-circuit release
    5
  • Depth
    78.5
  • Overload release current setting
    0.25

TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for 3-phase motor applications 0.09kW/400V. It provides a thermal-magnetic protection with a thermal setting range 0.25-0.4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA/400V. Connection by lugs. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
