СКУ: GV2P32
SCHNEIDER ELECTRIC Motor circuit breaker
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated permanent current Iu
32
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000092
-
With integrated under voltage release
FALSE
-
Rated operation power at AC-3, 400 V
15
-
With integrated auxiliary switch
FALSE
-
Depth
97
-
Phase failure sensitive
TRUE
-
Height
89
-
Device construction
EV009311
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Rated operation power at AC-3, 230 V
7.5
-
Rated short-circuit breaking capacity lcu at 400 V, AC
35
-
Adjustment range undelayed short-circuit release
416
-
Width
44.5
-
Overload release current setting
24

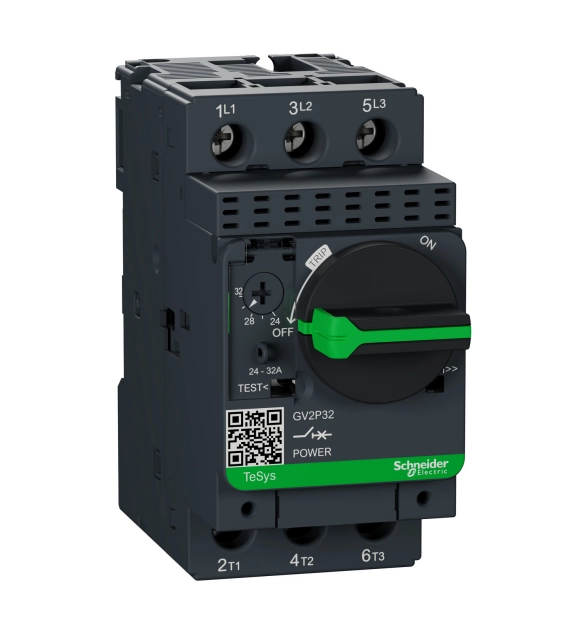

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW/400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA/400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
