СКУ: A9L65601

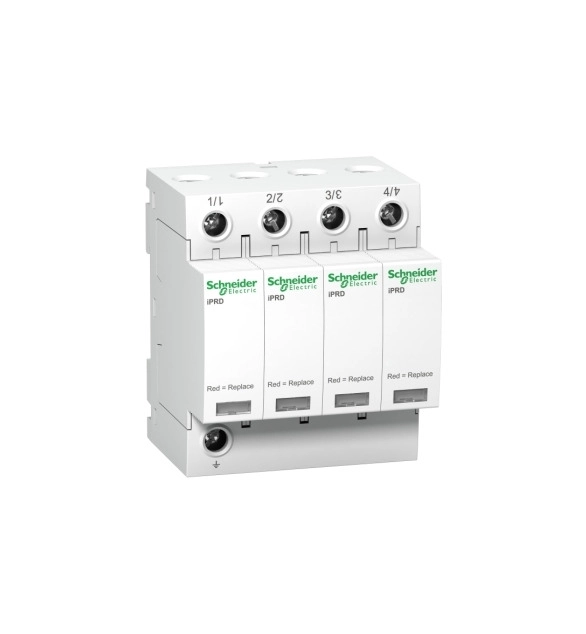

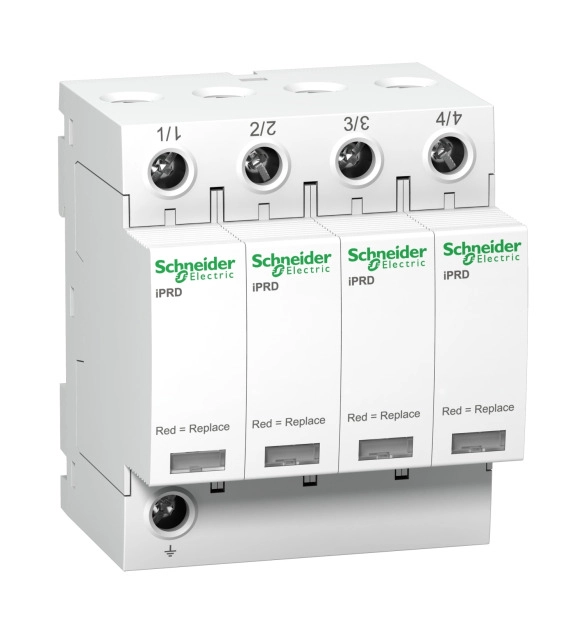

SCHNEIDER ELECTRIC Modular surge arrester iPRD65r - 3P+N, 350V, with remote transfert
-
Brand
Schneider Electric
-
Number of poles
3
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Lockable
TRUE
-
Mounting method
EV000242
-
For fuse size
EV011649
-
Width in number of modular spacings
3
-
Built-in depth
44
-
With optical defect indication
TRUE
-
Nominal voltage
400
This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 2P pole, up to 10A rated current, and gG or aM fuse curve with a fuse cartridge type of 8.5mm x 31.5mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.
