СКУ: 31147

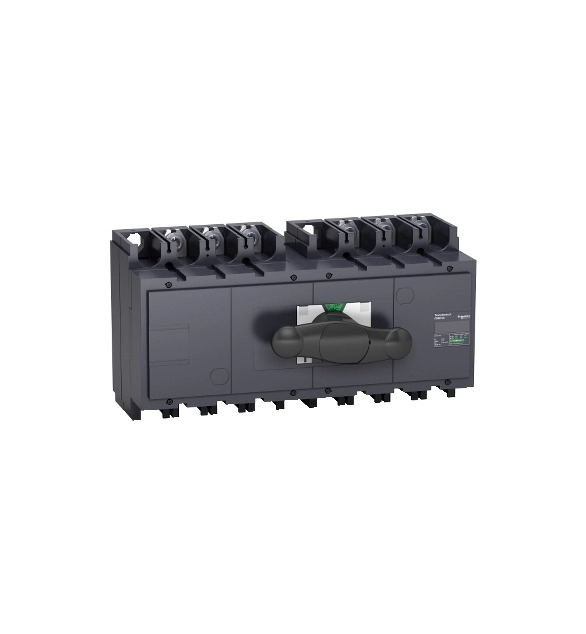

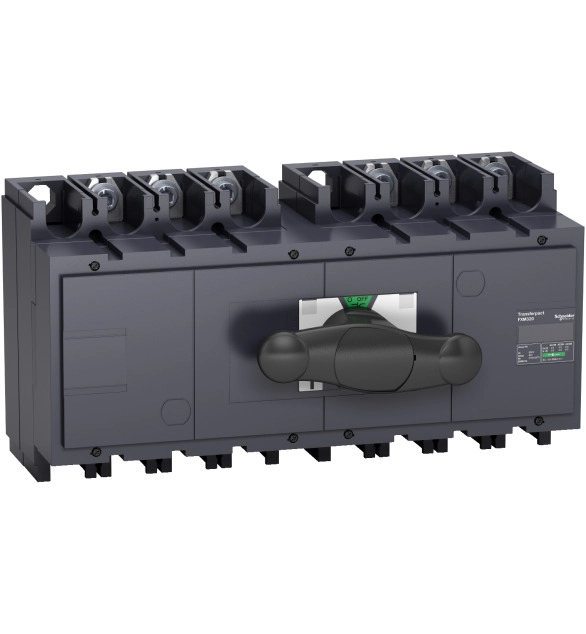

SCHNEIDER ELECTRIC Mnual source changeover switch INS250, 4 poles, 250A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as reversing switch
    FALSE
  • Suitable for front mounting centre
    TRUE
  • Max. rated operation voltage Ue AC
    690
  • Voltage release optional
    FALSE
  • Device construction
    EV009211
  • Version as safety switch
    FALSE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated operating voltage
    690
  • Suitable for front mounting 4-hole
    TRUE
  • Number of switches
    1
  • Motor drive integrated
    FALSE
  • Suitable for intermediate mounting
    FALSE
  • Motor drive optional
    FALSE
  • Version as main switch
    TRUE
  • Interlockable
    TRUE
  • Version as maintenance-/service switch
    TRUE
  • Suitable for distribution board installation
    TRUE
  • Type of control element
    EV004095
  • Version as emergency stop installation
    TRUE
  • Colour control element
    EV000233
  • Number of poles
    4
  • Degree of protection (IP), front side
    EV006415
  • Suitable for floor mounting
    TRUE
  • Rated permanent current Iu
    630
  • Rated short-time withstand current lcw
    20
  • Number of auxiliary contacts as change-over contact
    4
  • Rated operation power at AC-23, 400 V
    315
  • Rated permanent current at AC-23, 400 V
    630

FXM250 is a complete manual source changeover assembly for two Compact INS250 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 250A at 690VAC 50/60Hz, in categories AC22A/AC23A. The operational current is 250A at 125VDC (2 poles in series) or at 250VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.
