СКУ: LV429272
SCHNEIDER ELECTRIC Manual auxiliary connector, ComPact NSX 100-NSX630, withdrawable circuit breakers
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of accessory/spare part
EV000154

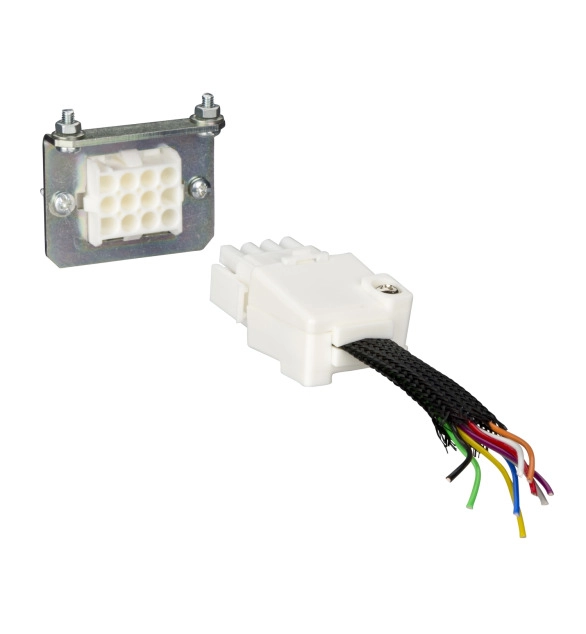

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected.
