СКУ: GV4L80N

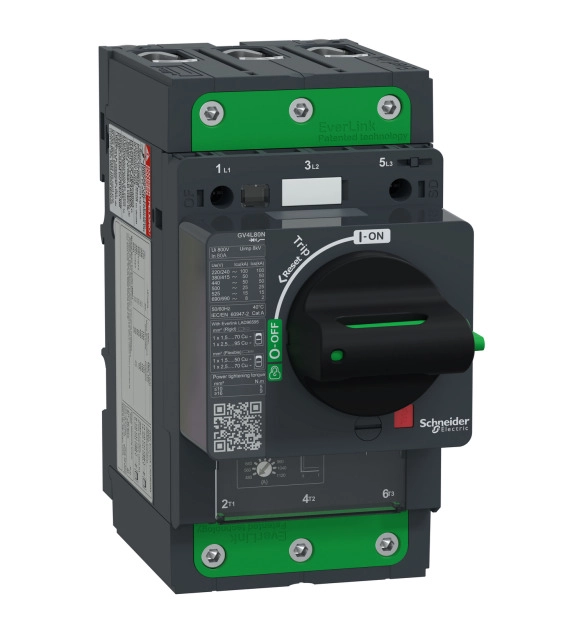

SCHNEIDER ELECTRIC Magnetic circuit breaker TeSys GV4 - 80A, 3P, with EverLink
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
22
-
Type of control element
EV000092
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Rated permanent current Iu
50
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated operation power at AC-3, 230 V
11
-
Width
81
-
Depth
165
-
Phase failure sensitive
FALSE
-
Height
155
-
Rated short-circuit breaking capacity lcu at 400 V, AC
25
-
Adjustment range undelayed short-circuit release
300
TeSys GV motor circuit breaker, 3 poles (3P), 12.5A/690V, for protection of 3-phase motors 3-5.5kW at 400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA at 400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 5-12.5A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
