SCHNEIDER ELECTRIC Magnetic circuit breaker - 115A, 3P, with EverLink | Spark & Co
  • 3D
|

СКУ: GV4L115B

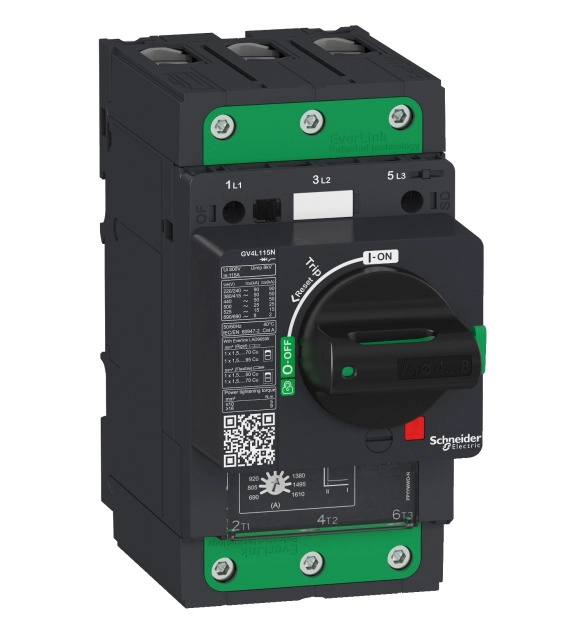

SCHNEIDER ELECTRIC Magnetic circuit breaker - 115A, 3P, with EverLink

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Degree of protection (IP)
    EV006415
  • With integrated under voltage release
    FALSE
  • With integrated auxiliary switch
    FALSE
  • Switch off technique
    EV006116
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • With thermal protection
    FALSE
  • Device construction
    EV009311
  • Rated operation power at AC-3, 400 V
    0.75
  • Rated operation power at AC-3, 230 V
    0.37
  • Type of control element
    EV001252
  • Width
    81
  • Rated permanent current Iu
    2
  • Phase failure sensitive
    FALSE
  • Adjustment range undelayed short-circuit release
    12
  • Height
    155
  • Depth
    116

TeSys GV motor circuit breaker, 3 poles (3P), 3.5A/690V, for protection of 3-phase motors 0.55-1.5kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 1.4-3.5A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
