СКУ: LSS100100

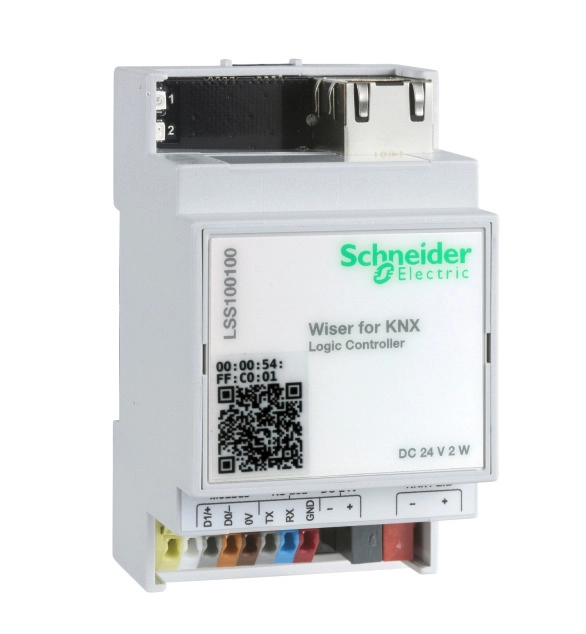

SCHNEIDER ELECTRIC Logic controller, SpaceLogic KNX, Wiser for KNX, 8 users
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
3
-
With LED indication
TRUE
-
Updateable
TRUE
-
IR interface
FALSE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Web-Server
TRUE
-
Demounting protection
FALSE
-
Other bus systems
EV000154
-
Bus system LON
FALSE
-
Protocol
EV006511
-
Provider dependent
FALSE
-
Operating voltage
24
-
Voltage type
EV000461
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Radio frequent bidirectional
FALSE
-
Bus system KNX
TRUE
-
Radio interface
FALSE
-
Model
EV006485
-
Visualization
TRUE
Wiser for KNX. Wiser for KNX (formerly know as homeLYnk) is the easiest way to visualise and control a complete Home Automation Solution in a KNX and Modbus networks. Wiser for KNX can be used in several ways: As an user interface to display and control relevant informations on mobile devices. As a gateway to translate and enable communication between different products. As an aggregator to stock, analyze, and send the data (.csv file for example). As an event controler that sends email in case of issues. Applications: Logical functions. WEB SCADA visualization for PC and touch-devices. Cross-standard gateway between KNX and Modbus RTU/TCP. BACnet Server (150 points). Integration with third party devices over RS-232 (IR, AV). Scheduling. Camera streaming. Data logger with trends. Pre-made Modbus templates. Easy bloc programming. Up to 8 users with different login and password. BACnet certified BACnet Application Specific Controller (B-ASC). New icons. Supply voltage: 24 V DC. Power consumption: 2 W. LED indicator 1: Green LED (CPU load). LED indicator 2: Green LED (Operation) or Red LED (Reset). Interface: 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 k Ohm, no termination). 1x RS-232, 1x USB2.0, 1x Reset push button. Terminal: KNX bus: Bus connecting terminal 2 x 0.8 mm. Power supply: Clamp, 0.5 mm²-1.5 mm². Serial: Clamp, 0.5 mm²-1.5 mm². Operation: -5°C to +45°C. Environment: Can be used at elevations up to 2000 m above sea level (MSL). Max. humidity: 93 %, no condensation. Dimension: 90 x 52 x 58 mm (HxWxD). Device width: 3 modules, approx. 54 mm. Visualisations can be generated automatically for smartphone, tablet and touch panels using the EConfigure KNX Lite (LSS900100) software.
