СКУ: ZALVB1

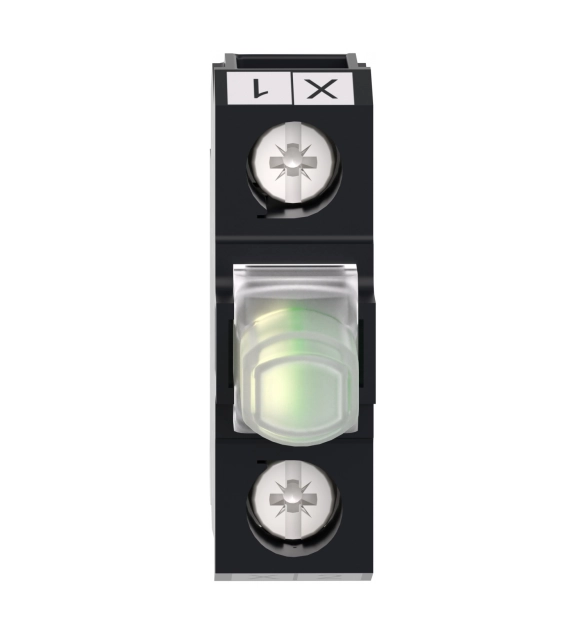

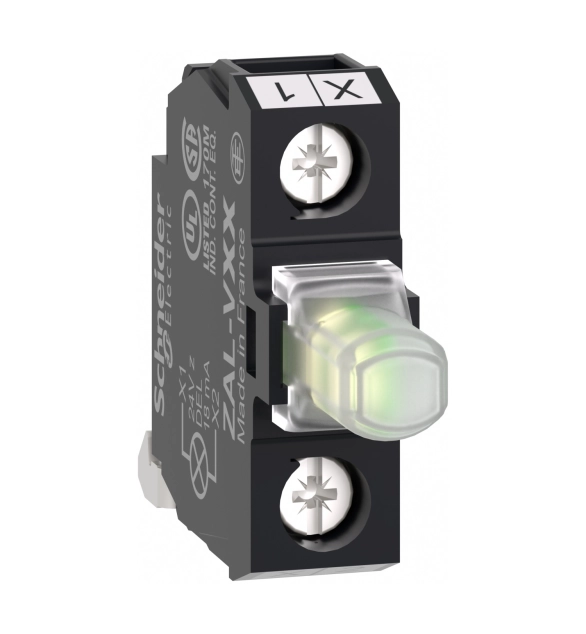

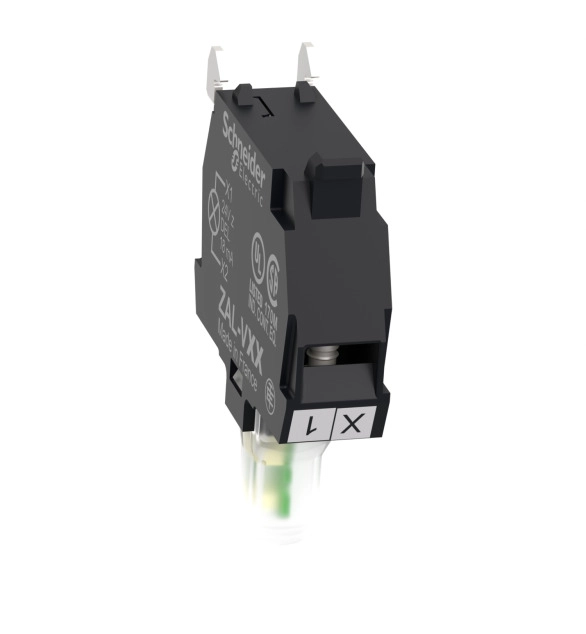

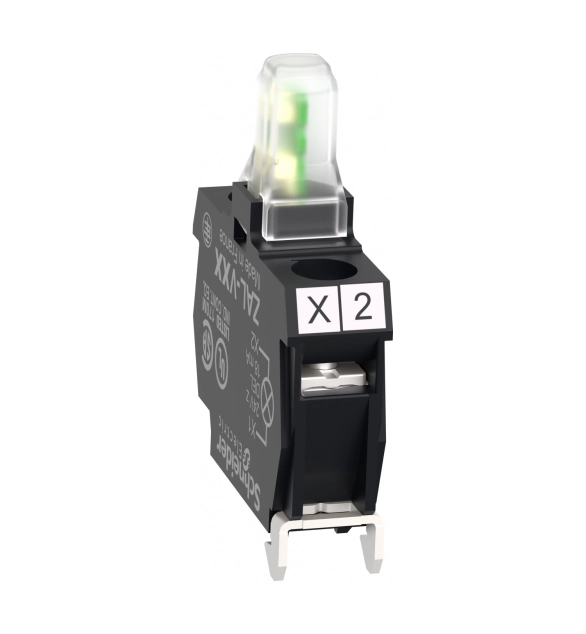

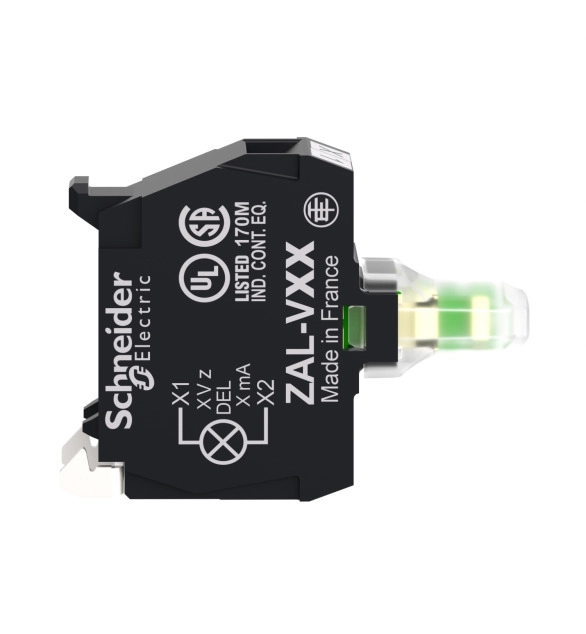

SCHNEIDER ELECTRIC Light block, white, LED, HS code: 85312095, COO: FR, 0.01kg
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Connection type auxiliary circuit
EV000415
-
With integrated voltage decreasing resistor
FALSE
-
Transformer integrated
FALSE
-
Voltage type for actuating
EV000509
-
With light source
TRUE
-
Lamp type
EV000432
-
With integrated diode
TRUE
-
Colour lamp
EV000202
-
Rated voltage Ue at AC 50 Hz
24
-
Rated voltage Ue at DC
24
-
Rated voltage Ue at AC 60 Hz
24
-
Type of fastening
EV009177
This white light block with universal LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
