SCHNEIDER ELECTRIC Lexium 62 Double Drive 27A, HS code: 85044090, COO: DE, 3.0kg /PO:40570243/ | Spark & Co
  • 3D
|

СКУ: LXM62DD27D21000

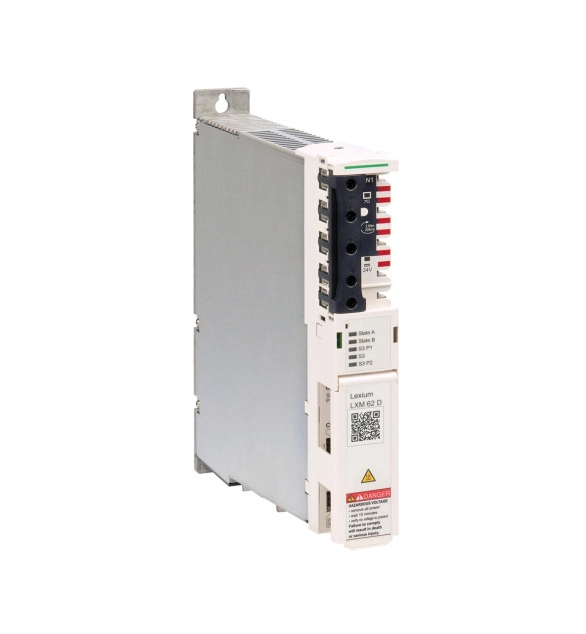

SCHNEIDER ELECTRIC Lexium 62 Double Drive 27A, HS code: 85044090, COO: DE, 3.0kg /PO:40570243/

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Degree of protection (IP)
    EV000154
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Number of HW-interfaces RS-485
    1
  • Number of analogue inputs
    2
  • Number of analogue outputs
    1
  • With control element
    FALSE
  • Number of HW-interfaces other
    2
  • Number of digital inputs
    6
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Number of digital outputs
    2
  • Max. output frequency
    500
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Application in domestic- and commercial area permitted
    FALSE
  • Integrated breaking resistance
    FALSE
  • 4-quadrant operation possible
    FALSE
  • Mains voltage
    200
  • Max. output voltage
    480
  • Application in industrial area permitted
    FALSE
  • Type of converter
    EV000154
  • Max. output at quadratic load at rated output voltage
    110
  • Max. output at linear load at rated output voltage
    110
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces RS-232
  • Nominal output current I2N
    27

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The double drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a double drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets EN 62061, EN 61800-5-1, EN 61800-3, CSA C22.2 No 14, IEC 61508, UL 508C and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
