СКУ: XB4BW3365

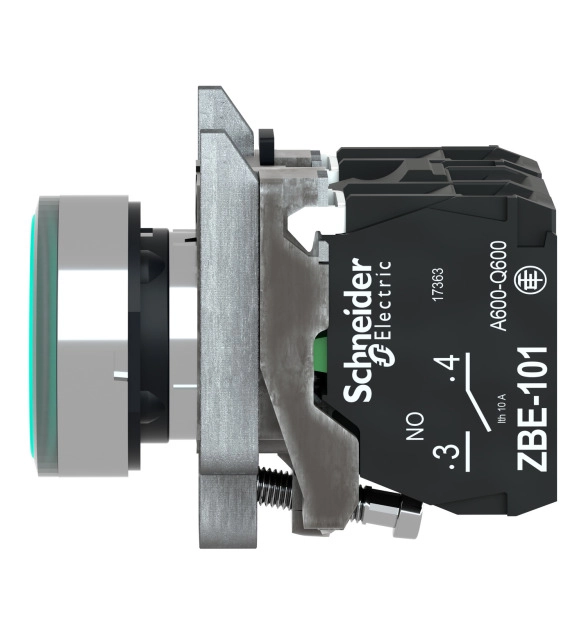

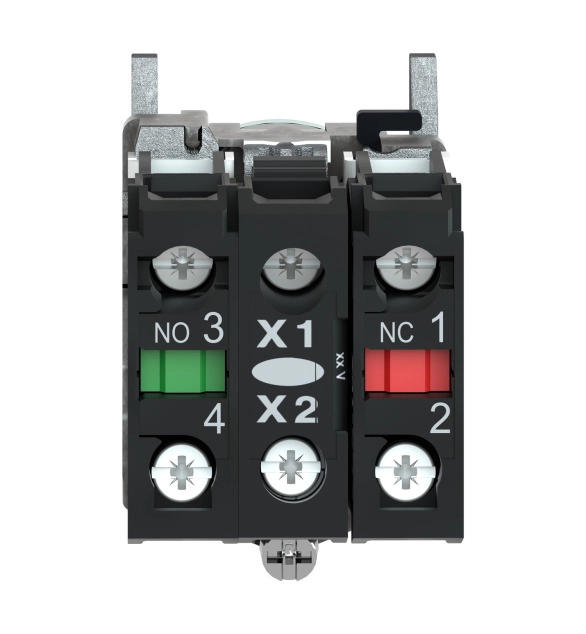

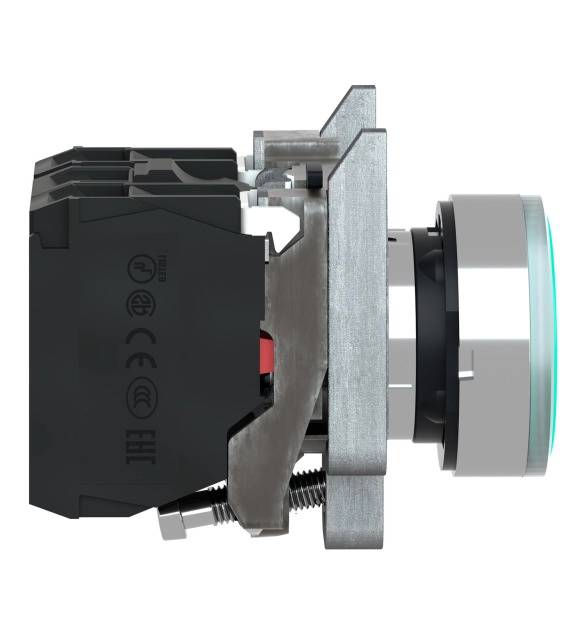

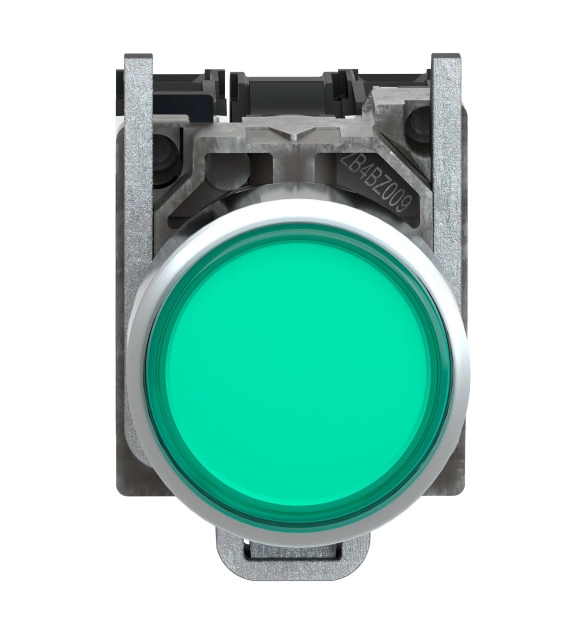

SCHNEIDER ELECTRIC Illuminated push button, metal, green, 22mm, spring return, lt 250V, 1NO+1NC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Switching function latching
FALSE
-
Number of contacts as change-over contact
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Number of command positions
1
-
Spring-return
TRUE
-
Material front ring
EV000914
-
Type of button
EV000880
-
Colour button
EV000080
-
Suitable for illumination
TRUE
-
Supply voltage lamp
120
This Harmony XB4 plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
