СКУ: NSYCMUMC50

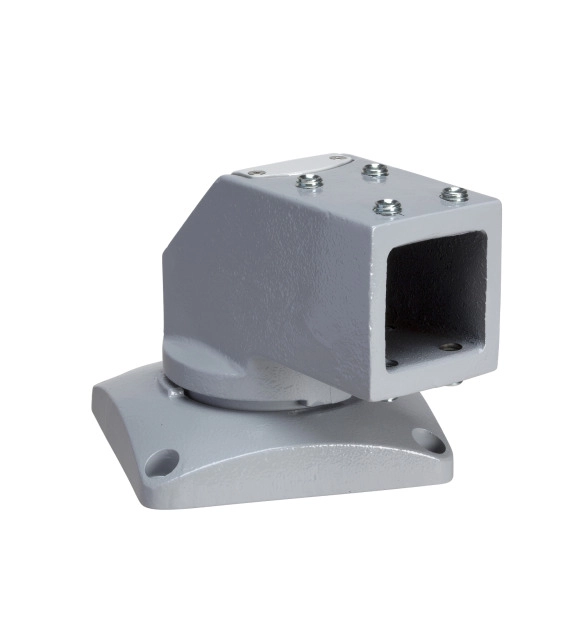

SCHNEIDER ELECTRIC Horizontal rotating bracket, square 50mm, RAL7040, for S3CM HMI encl.
-
Brand
Schneider Electric
-
Colour
EV000270
-
Material
EV000914
-
Model
EV009466
-
RAL-number
7040
-
Depth
180
-
Height
147
-
Width
154
-
Max. load capacity
2
DLP chassis for PanelSeT PLA and PanelSeT PHD enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 500mm The height is 1000mm Number of 18mm modules is 114 (1 module = 2 steps = 18 mm) Number of horizontal rows is 6 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 6 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 6 front panels with 35mm DIN rails IP2x not respected when chassis is mounted at 67mm
