СКУ: HMIS85

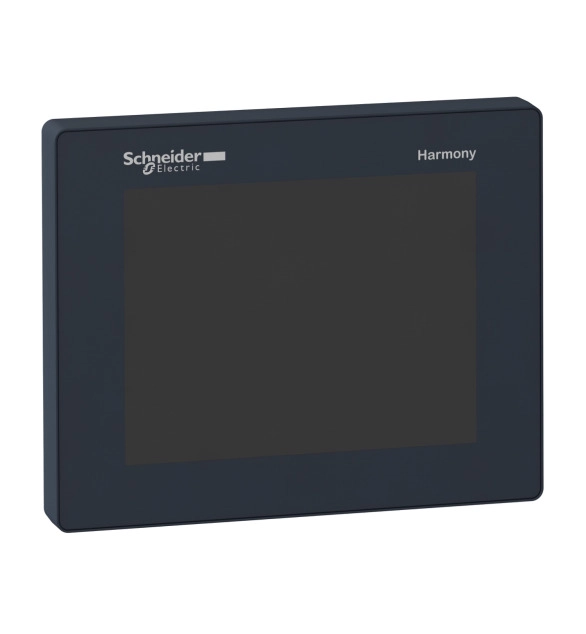

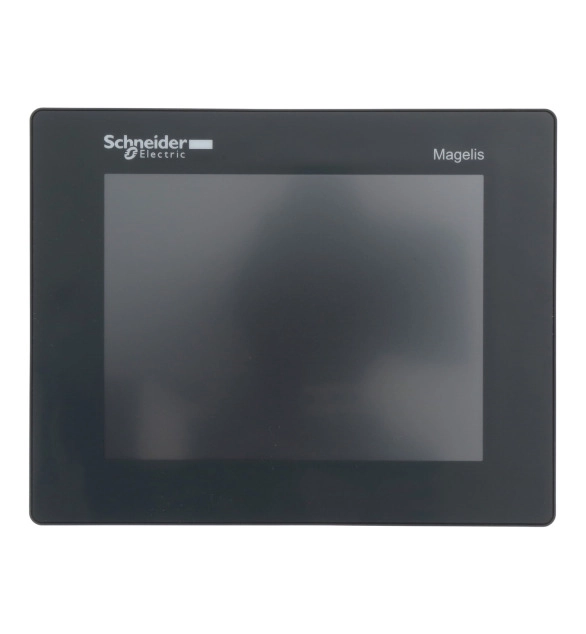

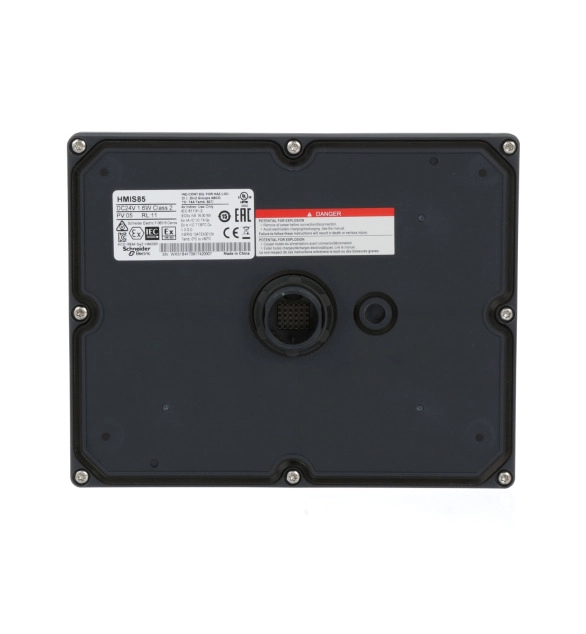

SCHNEIDER ELECTRIC HMI Touch Panel, TFT LCD, 5.7", 320x240 Pixels, 163mm x 129.4mm
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
Degree of protection (IP), front side
EV008925
-
With numeric keyboard
FALSE
-
With alpha numeric keyboard
FALSE
-
Process value representation (output) possible
TRUE
-
With recipes
TRUE
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
With message indication
TRUE
-
Number of HW-interfaces other
1
-
Number of HW-interfaces USB
2
-
Useful project memory/user memory
128000
-
Number of grey-scales/blue-scales of display
16
-
With message system (incl. buffer and confirmation)
TRUE
-
Type of display
EV005759
-
With printer output
FALSE
-
Process default value (input) possible
TRUE
-
Number of online languages
8
-
Additional software components, loadable
TRUE
-
Touch technology
EV013187
-
With SW interfaces
FALSE
-
Voltage type of supply voltage
EV000509
-
Number of pixels, horizontal
320
-
With colour display
TRUE
-
Supporting protocol for CAN
TRUE
-
Number of colours of the display
65000
-
IO link master
TRUE
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of pixels, vertical
240
-
Number of HW-interfaces industrial Ethernet
1
-
Number of HW-interfaces RS-232
1
-
Screen diagonal
5.7
-
Built-in depth
76.22
-
Width of the front
163
-
Height of the front
129.4
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of function buttons, programmable
-
Number of HW-interfaces Wireless
-
Number of buttons with LED
-
Number of system buttons
-
Number of password levels
-
Operating temperature
-
Number of HW-interfaces RS-422
The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.
