СКУ: ZB5AW313

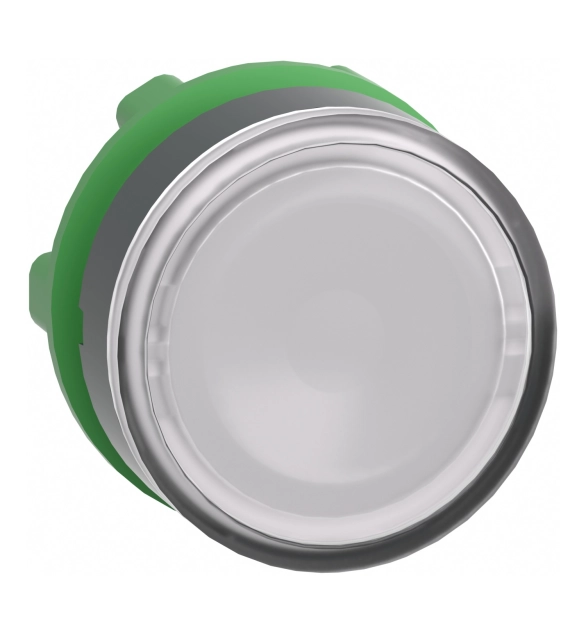

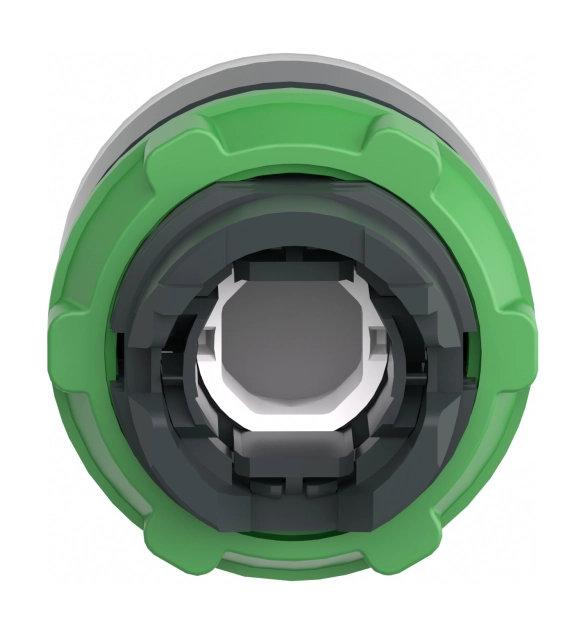

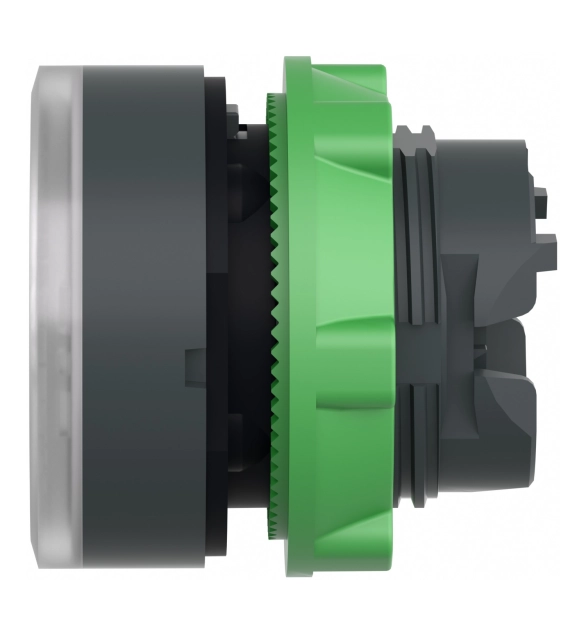

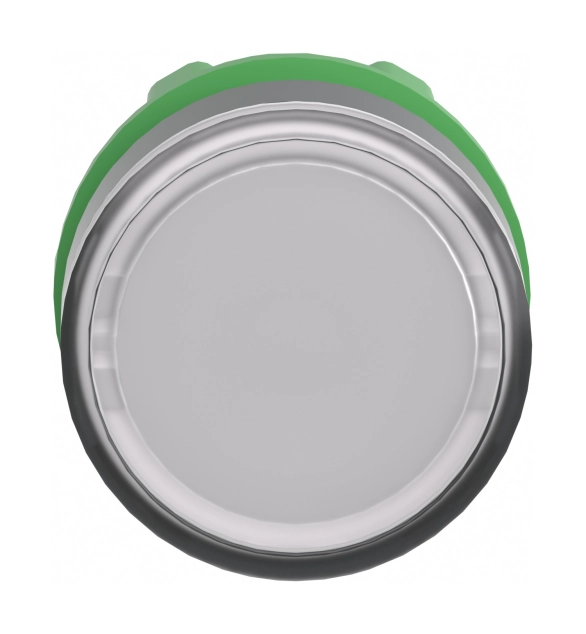

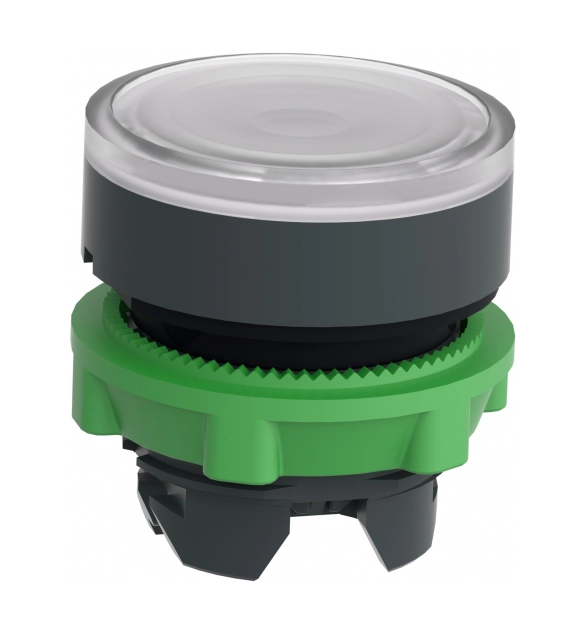

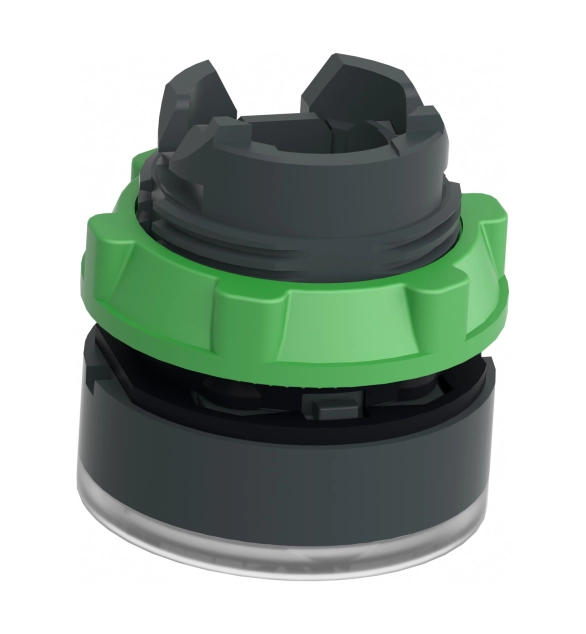

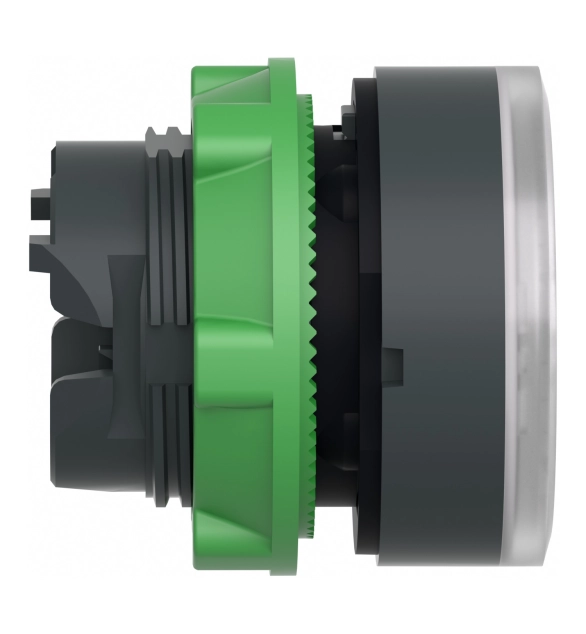

SCHNEIDER ELECTRIC Head for illuminated push button, white, 22mm, LED, spring return, plain lens
-
Brand
Schneider Electric
-
Labelled
FALSE
-
Degree of protection (NEMA), front side
EV000154
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Colour front ring
EV000206
-
Switching function latching
FALSE
-
Number of command positions
1
-
Degree of protection (IP), front side
EV006422
-
Spring-return
TRUE
-
With protective cover
FALSE
-
Type of button
EV000880
-
Colour button
EV000080
-
Suitable for illumination
TRUE
This Harmony XB5, plain lens illuminated green flush head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
